StarTech.com FAN370PRO
- Up to 4000 rpm fan speed and heavy-duty shroud ensure safe and effective cooling
- Features ball bearing for higher heat endurance and reduced noise emissions
- Helps the compatible processors by maintaining a great balance of performance and efficiency
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing

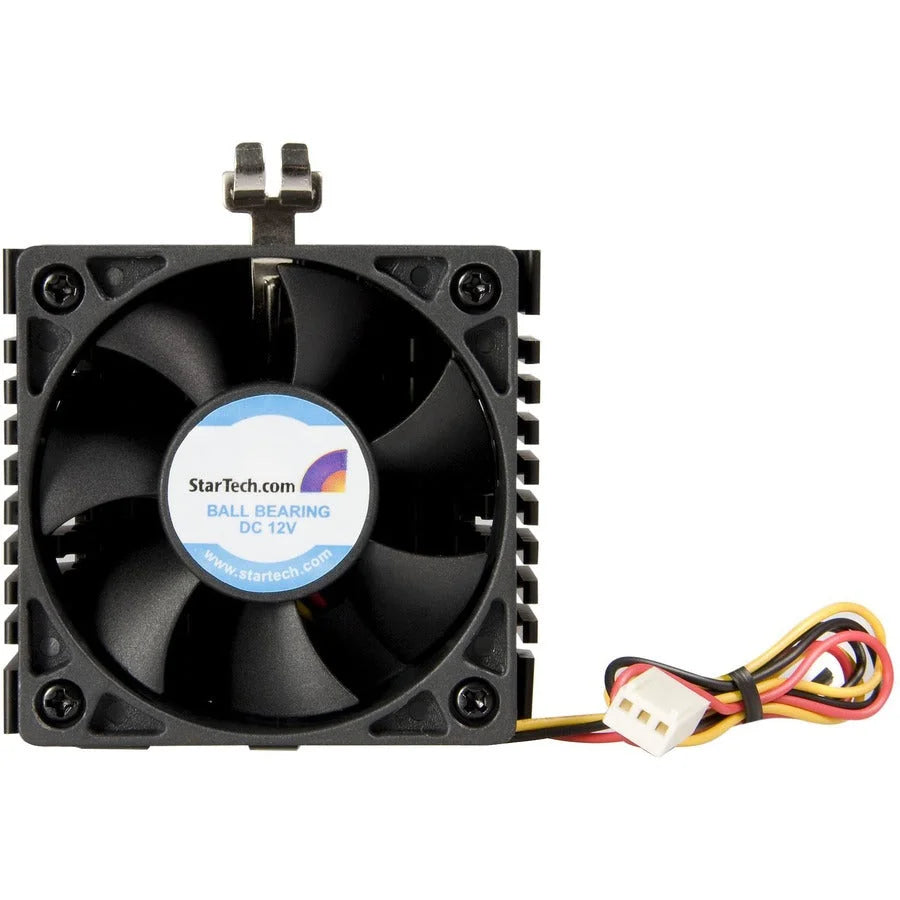

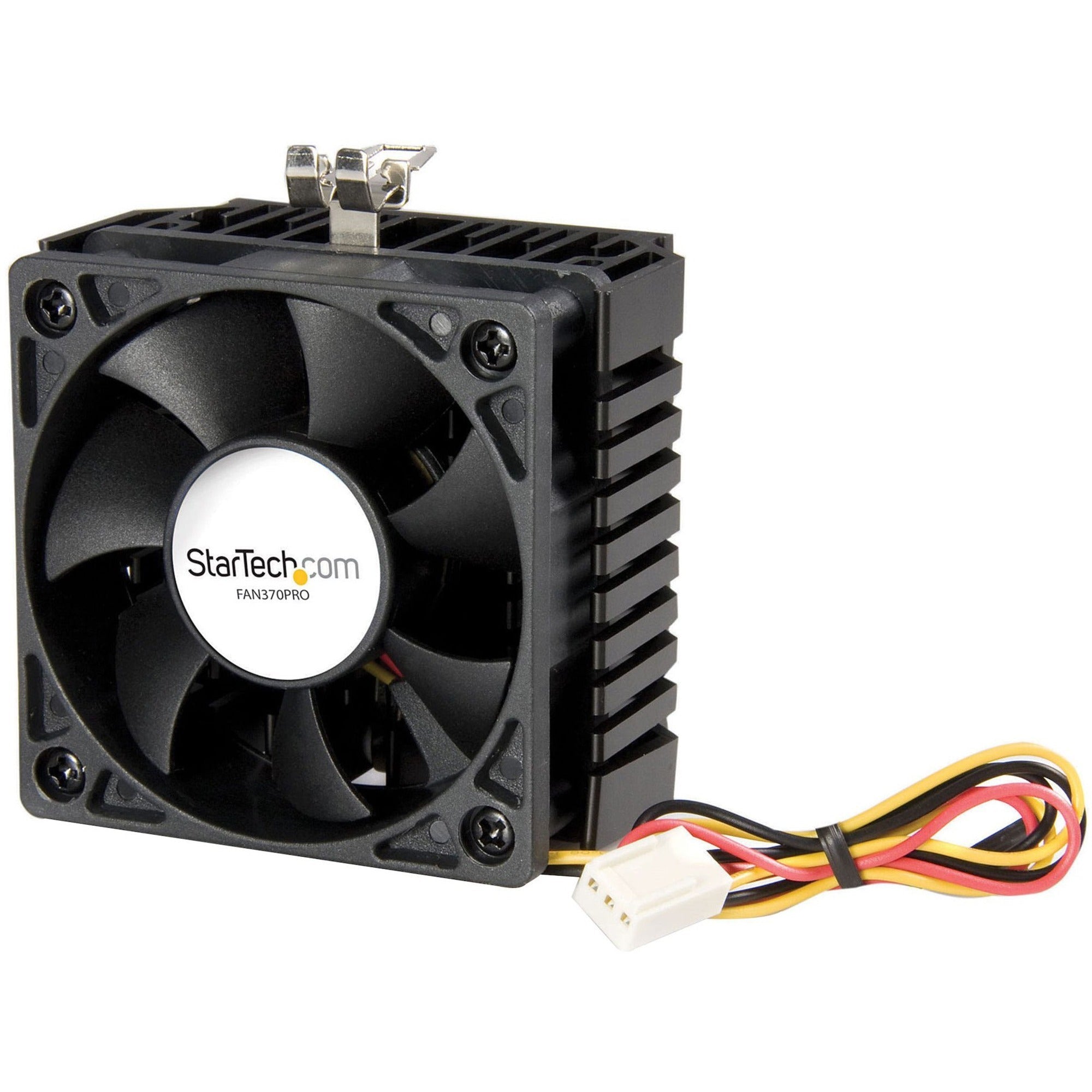

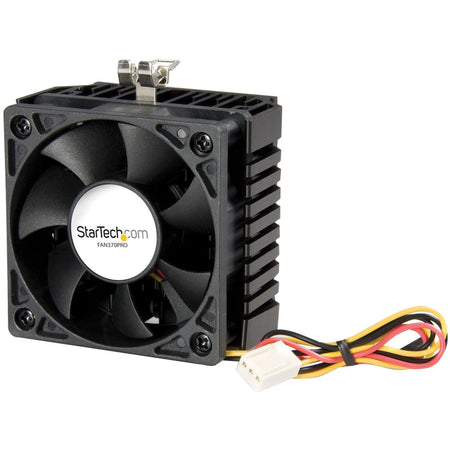

Measuring 65x60x45mm, this Socket 7/370 CPU Cooler/Fan is a combination heatsink and fan designed to cool high performance CPUs.
The Socket 7/370 CPU Cooler offers an extra-large heatsink combined with a quiet running 6x2 cm brushless ball bearing DC motor. The fan features a high-efficiency blade design capable of moving 21.46 CFM, providing enough cooling capacity for Pentium III and Celeron CPUs up to 1.4 GHz.
The Socket 7/370 CPU Cooler is powered through a TX3 (3-pin) connection to the computer power supply, and is a suitable cooling solution for Intel Pentium III and Celeron CPUs up to 1.4 GHz and AMD K6 processors at any speed.
Please note: to power the Socket 7/370 CPU cooler using an LP4 (4-pin) connection to the power supply, please see our TX3 to 2x LP4 Power Y Splitter Cable" title="TX3 to dual LP4 Power Y Splitter Cabl (CPUFANADAPT).
More from the Manufacturer
- Up to 4000 rpm fan speed and heavy-duty shroud ensure safe and effective cooling
- Features ball bearing for higher heat endurance and reduced noise emissions
- Helps the compatible processors by maintaining a great balance of performance and efficiency
Enhanced Overview
About the Brand
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | FAN370PRO |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Socket 7/370 CPU Cooler Fan w/ Heatsink |
| Packaged Quantity | 1 Each |
| Product Type | Cooling Fan/Heatsink |
Interfaces/Ports
| Connectors | 3-pin TX3 Female |
Warranty
| Limited Warranty | 2 Year |
Miscellaneous
| Package Contents |
|
| Compatibility |
|
| Application/Usage | Processor |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Additional Information |
|
Fan Information
| Fan Bearing Type | Ball Bearing |
| Fan Speed (Max) | 4000 rpm |
| Maximum Airflow | 20.20 CFM |
| Noise Levels (A-Weighted) | 31 dB(A) |
Physical Characteristics
| Product Material | Plastic |
| Heatsink Material | Aluminum |
| Maximum Fan Diameter | 2.28" |
| Heatsink Height | 2.28" |
| Heatsink Width | 2.48" |
| Heatsink Depth | 0.79" |
| Fan Height | 2.28" |
| Fan Width | 2.28" |
| Fan Depth | 0.79" |
| Weight (Approximate) | 4.80 oz |
Power Description
| Input Voltage | 12 V DC |
Most orders ship within 1-2 Business Days! We ship both UPS Ground and Truck Freight depending on the weight of the order.
Please note some products may ship directly from the manufacturer and require a longer lead time for shipping.
Q: What processors is this cooler compatible with?
A: This cooler is compatible with Intel Celeron up to 866 MHz, Pentium III up to 866 MHz, and AMD K6-2 & K6-3 up to 700 MHz. It is designed for Socket 7 and Socket 370 socket types.
Q: What is included in the package?
A: The package includes one Socket 7/370 CPU Cooler Fan with Heatsink and one packet of thermal compound.
Q: What type of power connector does this cooler use?
A: This cooler uses a 3-pin TX3 Female connector to connect to the computer power supply. If you need to use an LP4 (4-pin) connection instead, a TX3 to 2x LP4 Power Y Splitter Cable is available separately.
Q: What are the dimensions of this cooler?
A: The cooler measures 65x60x45mm overall. The heatsink is 2.48 inches wide, 2.28 inches in height, and 0.79 inches in depth. The fan is 2.28 inches in width, height, and depth.
Q: What is the maximum fan speed and airflow?
A: The fan has a maximum speed of 4000 rpm and a maximum airflow of 20.20 CFM.
Q: What is the noise level of this cooler?
A: The noise level is 31 dB(A).
Q: What type of bearing does the fan use?
A: The fan features a ball bearing for higher heat endurance and reduced noise emissions.
Q: What is the warranty period for this product?
A: This product comes with a 2-year limited warranty.
