StarTech.com FAN3701U
- Up to 5000 rpm fan speed and heavy-duty shroud ensure safe and effective cooling
- Features ball bearing for higher heat endurance and reduced noise emissions
- Helps the compatible processors by maintaining a great balance of performance and efficiency
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing

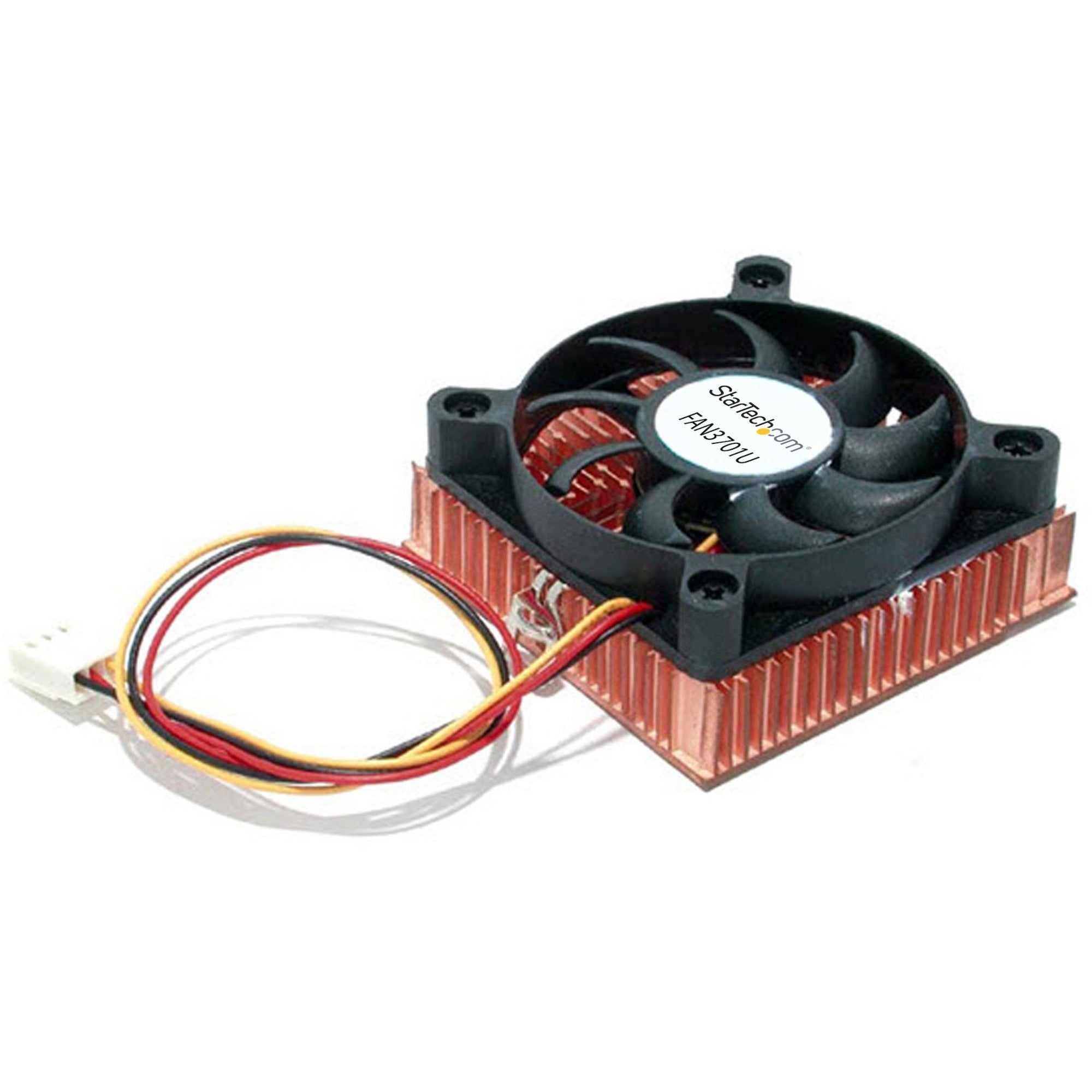

This 60x10mm Socket 7/370 CPU Cooler helps keep your 1U servers running smoothly, by providing a reliable, cost-effective server cooling solution.
The server CPU cooler features a copper base and socket-type CPU fan, ensuring rapid heat dissipation in the reduced space of a 1U server environment.
The CPU cooler is powered through a simple TX3 connection to the server power supply, and is suitable for all Intel Celeron/PIII processors and AMD Athlon/Duron processors up to 1GHz.
More from the Manufacturer
- Up to 5000 rpm fan speed and heavy-duty shroud ensure safe and effective cooling
- Features ball bearing for higher heat endurance and reduced noise emissions
- Helps the compatible processors by maintaining a great balance of performance and efficiency
Enhanced Overview
About the Brand
Warranty
| Limited Warranty | 2 Year |
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | FAN3701U |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 60x10mm Socket 7/370 CPU Cooler Fan |
| Packaged Quantity | 1 Each |
| Product Type | Cooling Fan/Heatsink |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Product Material | Plastic |
| Heatsink Material | Copper |
| Maximum Fan Diameter | 2.36" |
| Heatsink Height | 2.52" |
| Heatsink Width | 2.48" |
| Heatsink Depth | 0.39" |
| Fan Height | 2.36" |
| Fan Width | 2.36" |
| Fan Depth | 0.39" |
| Fan Diameter Details | 1 x 60mm |
| Height | 2.4" |
| Width | 2.4" |
| Depth | 0.4" |
| Weight (Approximate) | 7.04 oz |
Interfaces/Ports
| Connectors | 1 - TX3 Female TX3 |
Miscellaneous
| Package Contents |
|
| Compatibility | CPU Compatibility:
|
| Application/Usage | Processor |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Additional Information |
Applications/Solutions:
Advantage:
|
Fan Information
| Fan Bearing Type | Ball Bearing |
| Fan Speed (Max) | 5000 rpm |
| Maximum Airflow | 13.48 CFM |
| Noise Levels | 31 dB |
Power Description
| Input Voltage | 12 V DC |
Most orders ship within 1-2 Business Days! We ship both UPS Ground and Truck Freight depending on the weight of the order.
Please note some products may ship directly from the manufacturer and require a longer lead time for shipping.
Q: What processors is this CPU cooler compatible with?
A: This cooler is compatible with Intel Celeron and Pentium III processors up to 1 GHz, as well as AMD Athlon and Duron processors up to 1 GHz. It uses Socket 370 type.
Q: What is included in the package?
A: The package includes one 60x10mm Socket 7/370 CPU Cooler Fan and one packet of thermal compound.
Q: What type of connection does this cooler use?
A: The cooler is powered through a TX3 Female connector connection to the server power supply.
Q: What is the maximum fan speed?
A: The fan speed reaches up to 5000 rpm.
Q: What material is the heatsink made from?
A: The heatsink base is made of copper.
Q: What is the noise level of this cooler?
A: The cooler operates at 31 dB.
Q: How long is the warranty?
A: This product comes with a 2 year limited warranty.
Q: What type of bearing does the fan use?
A: The fan features a ball bearing.
