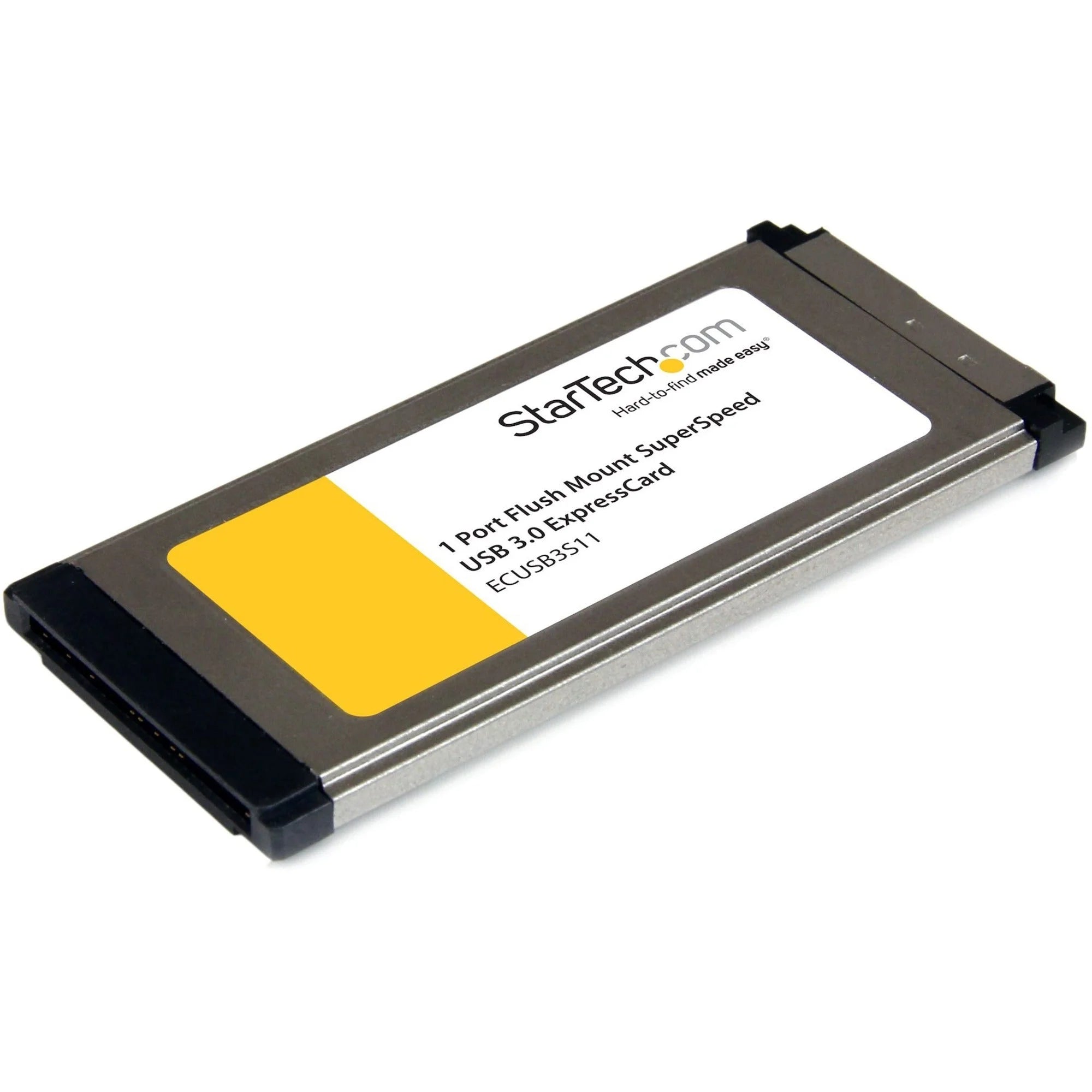

StarTech.com 1 Port Flush Mount ExpressCard SuperSpeed USB 3.0 (5Gbps) Card Adapter - ExpressCard/34 - Plug-in Module
- Unique flush-mount form factor design
- SuperSpeed USB 3.2 Gen 1 compliant host interface with support for transfer rates up to 5 Gbps
- UASP support for more efficient data transfer
- Provides up to 850mA of power over USB
- Works with most Windows based operating systems
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing

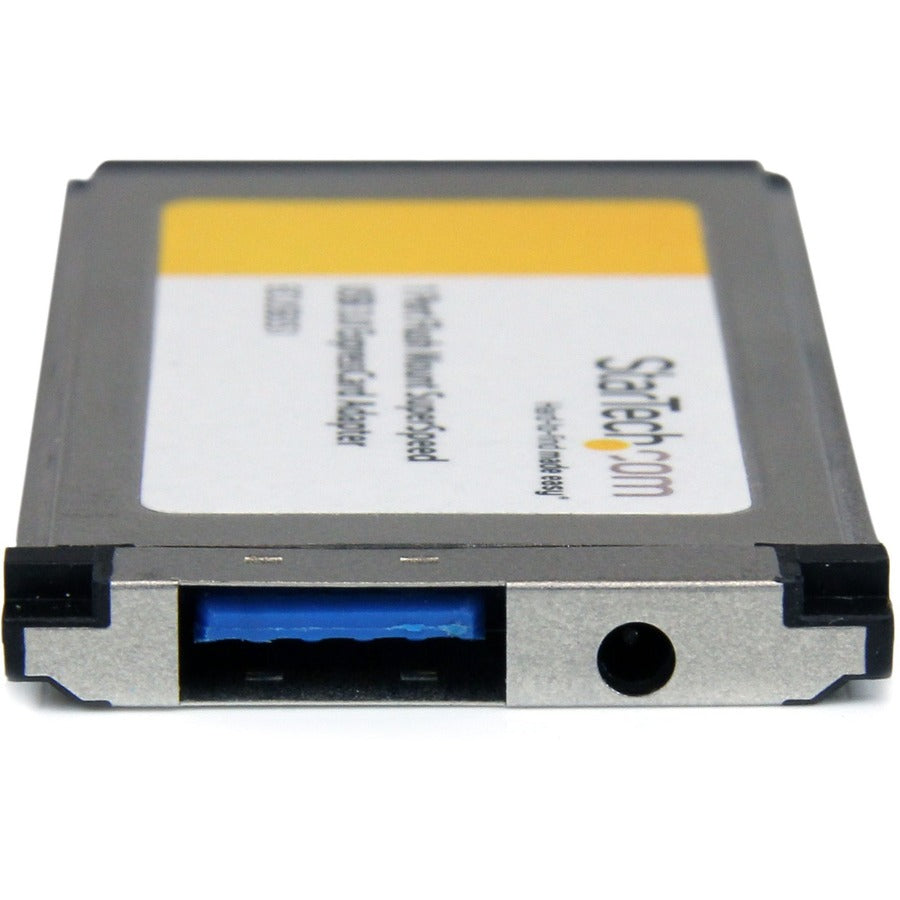

The USB 3.2 Gen 1 adapter uses a unique form factor design that allows it to sit fully in a standard 34mm ExpressCard slot without sticking out. The port sits virtually flush with the sides of the laptop, enabling you to leave the card installed even while on the move, without fear of damage to the card or slot.
Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.2 Gen 1 controller performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.
The USB 3.2 Gen 1 ExpressCard adapter supports data transfer rates up to 5Gbps, and is still backward compatible with USB 2.0 at up to 480Mbps, or USB 1.1/1.0 at up to 12/1.5 Mbps respectively.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
UASP is supported in Windows 8, Server 2012 and Linux kernel 2.6.3 or later. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.2 Gen 1 at peak performance.
At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
Test results were obtained using an Intel Ivy Bridge system, StarTech.com add-on USB 3.2 Gen 1 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
More from the Manufacturer
- Unique flush-mount form factor design
- SuperSpeed USB 3.2 Gen 1 compliant host interface with support for transfer rates up to 5 Gbps
- UASP support for more efficient data transfer
- Provides up to 850mA of power over USB
- Works with most Windows based operating systems
About the Brand
Physical Characteristics
| Color Family | Dual Color |
| Product Color | Silver |
| Product Color | Black |
| Form Factor | Plug-in Module |
| Height | 0.2" |
| Width | 1.3" |
| Length | 3" |
| Weight (Approximate) | 0.80 oz |
Interfaces/Ports
| Total Number of USB Ports | 1 |
| Number of USB 3.2 Ports | 1 |
Miscellaneous
| Package Contents |
|
| Platform Supported | PC |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Software
| Operating System Supported | Windows Vista |
| Operating System Supported | Windows Server 2019 |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | Windows Server 2012 |
| Operating System Supported | Windows Server 2008 R2 |
| Operating System Supported | Windows 8.1 |
| Operating System Supported | Windows 8 |
| Operating System Supported | Windows 7 |
| Operating System Supported | Windows 11 |
| Operating System Supported | Windows 10 |
| Operating System Supported | Linux 4.11.x |
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ECUSB3S11 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 1 Port Flush Mount ExpressCard SuperSpeed USB 3.0 (5Gbps) Card Adapter |
| Packaged Quantity | 1 Each |
| Product Type | USB Adapter |
Warranty
| Limited Warranty | 2 Year |
Technical Information
| Host Interface | ExpressCard/34 |
Media & Performance
| UASP Support | Yes |
Most orders ship within 1-2 Business Days! We ship both UPS Ground and Truck Freight depending on the weight of the order.
Please note some products may ship directly from the manufacturer and require a longer lead time for shipping.
Q: What is the maximum data transfer rate supported by this adapter?
A: The adapter supports SuperSpeed USB 3.2 Gen 1 data transfer rates up to 5Gbps. It is also backward compatible with USB 2.0 at up to 480Mbps, and USB 1.1/1.0 at up to 12/1.5 Mbps respectively.
Q: Will this card stick out from my laptop?
A: No. The adapter uses a unique flush-mount form factor design that allows it to sit fully in a standard 34mm ExpressCard slot without sticking out. The port sits virtually flush with the sides of the laptop.
Q: What operating systems are supported?
A: The adapter supports Windows Vista, Windows 7, Windows 8, Windows 8.1, Windows 10, Windows 11, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019, and Linux 4.11.x.
Q: What is UASP and what performance improvement does it offer?
A: UASP (USB Attached SCSI Protocol) is supported by this adapter and performs up to 70% faster than conventional USB 3.2 Gen 1 when paired with a compatible UASP-enabled device. UASP also showed up to an 80% reduction in required processor resources at peak performance. UASP is supported in Windows 8, Server 2012, and Linux kernel 2.6.3 or later.
Q: What is included in the package?
A: The package includes 1 Port Flush Mount ExpressCard SuperSpeed USB 3.0 Card Adapter, 1 DC to USB Adapter Cable, 1 34mm to 54mm Stabilizer Bracket, 1 Driver CD, and 1 Instruction Manual.
Q: How much power does this adapter provide?
A: The adapter provides up to 850mA of power over USB.
Q: What warranty and support does StarTech.com offer?
A: The adapter is backed by a StarTech.com 2-year limited warranty and free lifetime technical support.
Q: What are the physical dimensions of this adapter?
A: The adapter measures 3 inches in length, 1.3 inches in width, and 0.2 inches in height, with an approximate weight of 0.80 oz.
