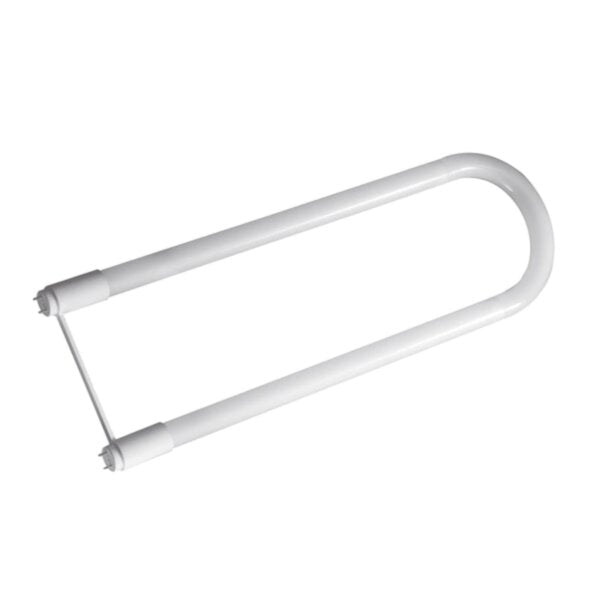

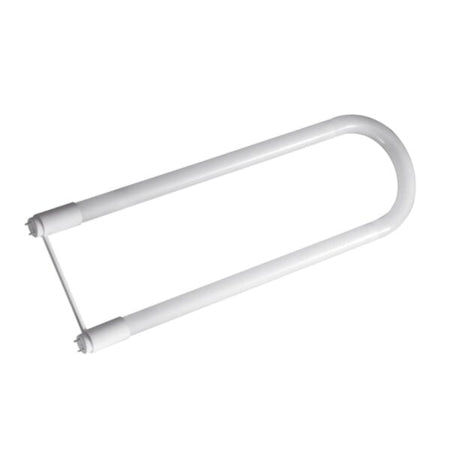

The Commercial LED CLT93-13WU6-8X0-AB U-Bend Tube Light is a reliable and energy-efficient lighting solution designed to replace traditional fluorescent U-bend lamps. With its hybrid installation compatibility, this tube light offers flexibility for both plug-and-play and ballast bypass setups, making it ideal for retrofitting existing fixtures.
Key features of this U-bend tube light include a wide 140° beam angle, durable film-coated shatter-resistant glass construction, and an environmentally friendly design with mercury-free materials and low UV/IR emissions. It boasts instant-on functionality without flicker or buzz, along with flexible wiring options for single or double-ended connections.
Certified by DLC for energy efficiency and rebate eligibility, this tube light is suitable for damp environments and fully enclosed fixtures, thanks to its damp location rating. Operating reliably within a temperature range of -4°F to 113°F (-20°C to 45°C), this product comes with a 5-year limited warranty for added peace of mind.
For detailed installation instructions, please refer to the
INSTALL GUIDE. To explore technical specifications, view the
SPEC SHEET. Additionally, you can check the
BALLAST COMPATABILITY LIST for compatibility details.
Specifications:
- Rated Life Hours: 50,000
- Certifications: UL, DLC
- Indoor Use Only
- Length: 2 Ft
- Product Size (L x W x H): 24 x 6 x 1
- Color: White
- Housing Color: White
- Construction: Film Coated Shatter Resistant Glass Tube
- Base: G13
- Shape: T8
- Volts: 120-277V
- Wiring: Single & Double Ended
- Tube Type: Type A+B
- Driver: Internal
- Operating Temperature: -25°C to 40°C
- Dimming: Dimmable 1-10V
- CRI: >80
- Lumens: 1,900
- Efficacy: 146 lm/W
- Lens: Frosted
- Warranty: 5 Years
- Case Quantity: 12 Case
