APC by Schneider Electric Smart-UPS C 1000VA LCD 230V - Tower - 3 Hour Recharge - 6.10 Minute Stand-by - 230 V AC Input
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency - Reduces utility costs, generates less heat.
- LCD Status Display - Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
- Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing
Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
- Cold-start capable - Provides temporary battery power when the utility power is out.
- Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- High online efficiency - Reduces utility costs, generates less heat.
- LCD Status Display - Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
- Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Specifications
| Product Family | Smart-UPS SMC |
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMC1000I |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Series | SMC |
| Product Name | Smart-UPS C 1000VA LCD 230V |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
Controls/Indicators
| Status Indicators | Multifunction LCD status and control console |
Interfaces/Ports
| Serial Port | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
Physical Characteristics
| Product Color | Black |
| Color Family | Black |
| Height | 8.62" |
| Width | 6.73" |
| Depth | 17.28" |
| Form Factor | Tower |
| Weight (Approximate) | 38.07 lb |
Power Description
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 600 W |
| Input Voltage | 230 V AC |
| Input Voltage Range | 170 V AC - 300 V AC |
| Output Voltage | 230 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 455 J |
Miscellaneous
| Package Contents | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty
| Limited Warranty | 2 Year |
Battery Information
| Number of Batteries | 1 |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 6.10 Minute |
| Backup/Run Time (Half Load) | 16.18 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
Environmental Conditions
| Maximum Operating Elevation | 10000 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Storage Elevation | 50000 ft |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Operating Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 41 dB(A) |
| Thermal Dissipation | 29.31 W |
Management
| Alarm | Low Battery |
| Alarm | Configurable Delay |
| Alarm | On Battery |
Technical Information

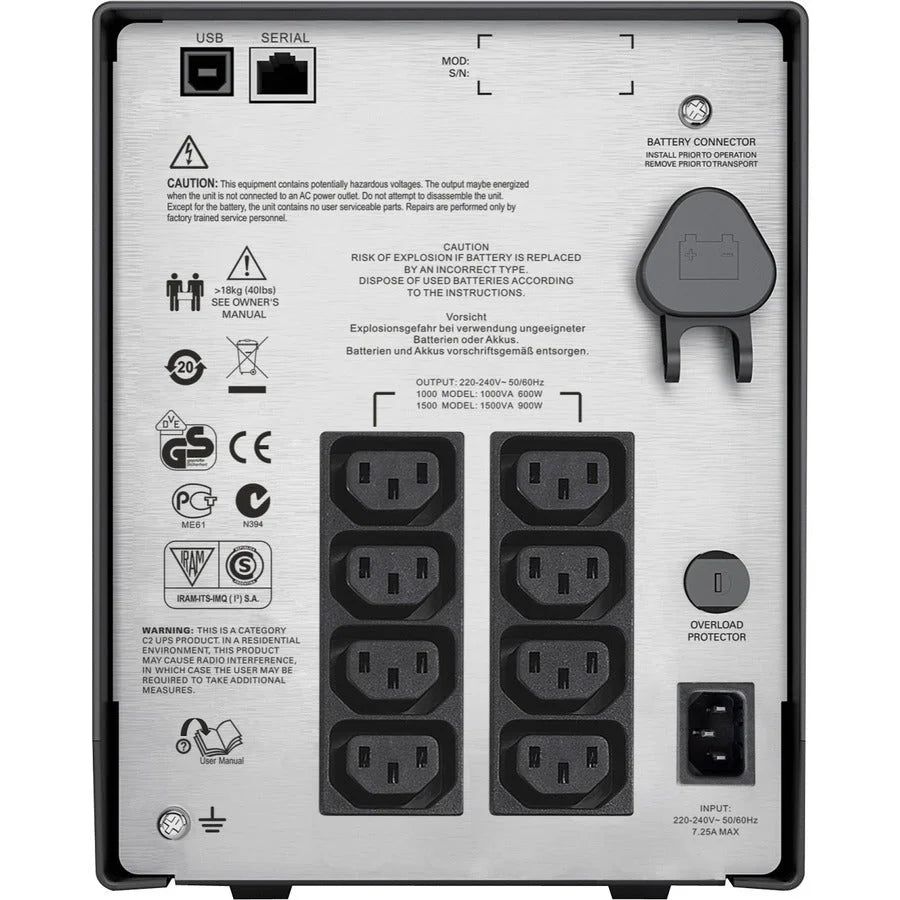

| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | IEC Jumper |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Receptacle Detail | 2 x IEC Jumper |
| Number of Battery & Surge Outlets | 10 |
Most orders ship within 1-2 Business Days! We ship both UPS Ground and Truck Freight depending on the weight of the order.
Please note some products may ship directly from the manufacturer and require a longer lead time for shipping.
Q: How long will this UPS keep my equipment running during a power outage?
A: The backup runtime depends on your load. At full load (600W), the Smart-UPS C 1000VA provides approximately 6.10 minutes of runtime. At half load, it provides approximately 16.18 minutes of runtime.
Q: What is included in the box?
A: The package includes the Smart-UPS C 1000VA LCD 230V unit, a CD with software, a Documentation CD, and a USB cable.
Q: How many outlets does this UPS have?
A: The Smart-UPS C 1000VA has 10 battery and surge outlets total, consisting of 8 x IEC 60320 C13 receptacles and 2 x IEC Jumper receptacles.
Q: What is the warranty period?
A: The Smart-UPS C 1000VA comes with a 2-year limited warranty.
Q: Can I replace the battery myself?
A: Yes, the UPS features hot-swappable batteries, meaning the battery can be replaced without powering down the unit.
Q: What input voltage range does this UPS accept?
A: The Smart-UPS C 1000VA accepts input voltage ranging from 170 V AC to 300 V AC.
Q: How long does it take to recharge the battery?
A: The typical battery recharge time is 3 hours.
Q: What are the physical dimensions of this UPS?
A: The Smart-UPS C 1000VA has the following dimensions: Height 8.62 inches, Width 6.73 inches, and Depth 17.28 inches. It weighs approximately 38.07 pounds.
