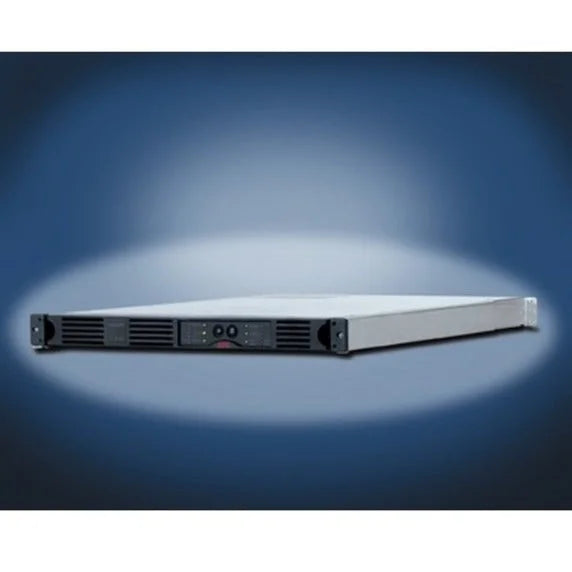

APC by Schneider Electric Smart-UPS 750VA RM - 1U Rack-mountable - 100 V AC Output - Sine Wave - Serial Port - USB
- Front-access servicing - Simplifies installation and UPS maintenance while minimizing space requirements.
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing
- Front-access servicing - Simplifies installation and UPS maintenance while minimizing space requirements.
Specifications
| Product Family | Smart-UPS |
Power Description
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 480 W |
| Output Voltage | 100 V AC |
| Waveform Type | Sine Wave |
Warranty
| Limited Warranty | 2 Year |
Controls/Indicators
| Status Indicators |
|
Interfaces/Ports
| Serial Port | Yes |
| USB | Yes |
| Total Number of Expansion Slots | 1 |
Physical Characteristics
| Product Color | Black |
| Color Family | Black |
| Height | 1.72" |
| Width | 19" |
| Depth | 26" |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 59 lb |
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SUA750RMJ1UB |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 750VA RM |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
Miscellaneous
| Package Contents | |
| Additional Information |
|
| Environmentally Friendly | Yes |
| Certifications & Standards |
|
Management
| Network Management | SNMP Manageable |
| Alarm | Low Battery |
| Alarm | On Battery |
| Battery Management | Intelligent Battery Management |
Environmental Conditions
| Maximum Operating Temperature | 113°F (45°C) |
Technical Information
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Cord Length | 6 ft |
| Emergency Power OFF | Optional |
Battery Information
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
Most orders ship within 1-2 Business Days! We ship both UPS Ground and Truck Freight depending on the weight of the order.
Please note some products may ship directly from the manufacturer and require a longer lead time for shipping.
Q: What is the power capacity of this UPS?
A: The Smart-UPS 750VA RM has a load capacity of 750 VA and 480 W.
Q: Does this UPS include management software?
A: Yes, the Smart-UPS includes PowerChute® plus software, which allows the UPS to safely store data and shut down your network operating system before the battery is fully discharged.
Q: What type of battery does this UPS use?
A: The Smart-UPS 750VA RM uses a lead-acid battery with spill-proof, maintenance-free characteristics and intelligent battery management.
Q: How many outlets does this UPS have?
A: The Smart-UPS 750VA RM has 4 NEMA 5-15R receptacles.
Q: What are the physical dimensions of this unit?
A: The Smart-UPS 750VA RM measures 19" wide, 26" deep, and 1.72" high. It is a 1U rack-mountable unit and weighs approximately 59 lb.
Q: What warranty does this product come with?
A: The Smart-UPS 750VA RM includes a 2-year limited warranty.
Q: Can this UPS be monitored remotely?
A: Yes, the Smart-UPS 750VA RM is SNMP manageable and includes both a serial port and USB connectivity for network management.
Q: What is included in the package?
A: The package includes the Smart-UPS 750VA RM unit, rack mounting brackets, rack mounting support rails, and a user guide in Japanese.
