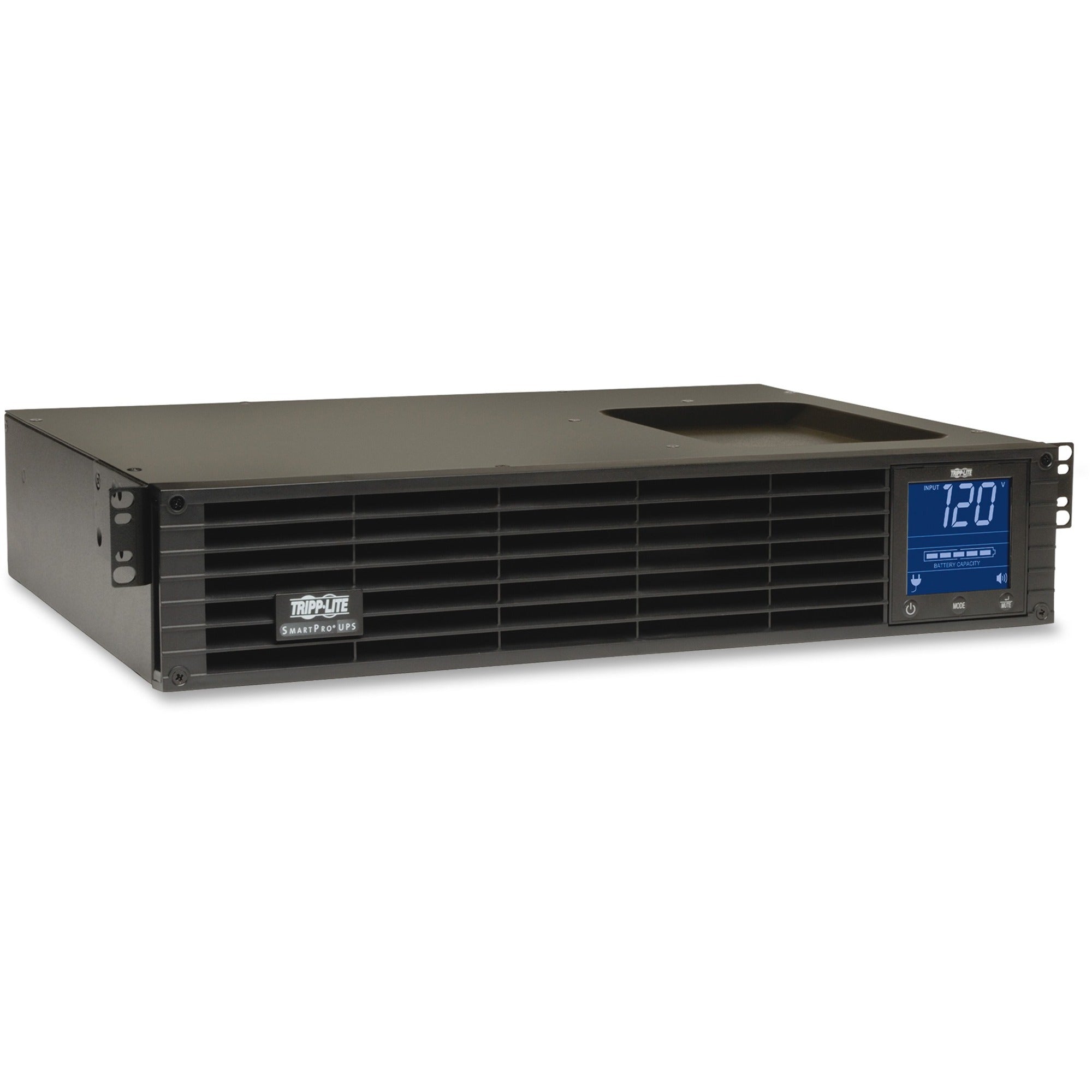

Tripp Lite series Line-interactive UPS Power Supply - 2U Rack/Tower - 6.40 Minute Stand-by - 120 V AC Input - 120 V AC Output
- AVR actively corrects brownouts and overvoltages back to usable levels
- Interactive LCD interface reports UPS operating mode, detailed UPS and more
- Super-fast switchover maintains operation of equipment without interruption
- 94% line-mode efficiency offers reduced heat emissions and operating costs
- Communications ports enable detailed monitoring of equipment load levels
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing
- AVR actively corrects brownouts and overvoltages back to usable levels
- Interactive LCD interface reports UPS operating mode, detailed UPS and more
- Super-fast switchover maintains operation of equipment without interruption
- 94% line-mode efficiency offers reduced heat emissions and operating costs
- Communications ports enable detailed monitoring of equipment load levels
Enhanced Overview
About the Brand
Specifications
| Product Family | SmartPro |
Controls/Indicators
| Status Indicators | LEDs |
Interfaces/Ports
| Serial Port | Yes |
| USB | Yes |
Miscellaneous
| Package Contents |
|
| Country of Origin | China |
| Certifications & Standards | UL Listed Certification |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Recycled | No |
| Assembly Required | No |
General Information
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMC10002URM |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMC10002URM |
| Product Name | Line-interactive UPS Power Supply |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
Power Description
| Load Capacity (VA) | 1000 VA |
| Load Capacity (Watt) | 700 W |
| Input Voltage | 120 V AC |
| Input Current | 9.20 A |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 570 J |
| Circuit Breaker | Yes |
Warranty
| Limited Warranty | 2 Year |
Physical Characteristics
| Height | 3.45" |
| Width | 17.35" |
| Depth | 12.50" |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 35.40 lb |
Environmental Conditions
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission | 45 dB |
| Thermal Dissipation | 35.75 W |
Technical Information

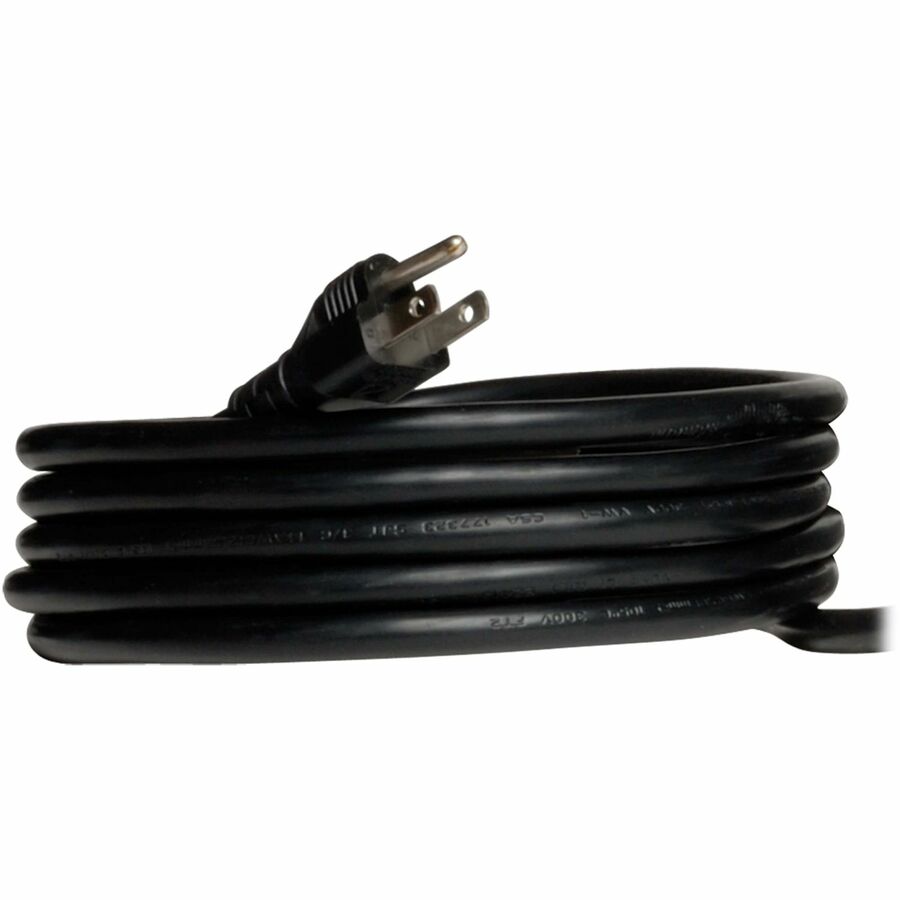

| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Protection Type | Under Voltage |
| Protection Type | Surge |
| Protection Type | Over Voltage |
| Protection Type | EMI / RFI |
| Protection Type | Brownout |
| Protection Type | Black Out |
| Cord Length | 9.84 ft |
| Emergency Power OFF | Yes |
Management
| Alarm | Low Battery |
| Alarm | Overload |
| Alarm | UPS StartUp |
| Alarm | UPS Fault |
| Alarm | Remote Shutdown |
| Alarm | Power Failure |
| Battery Management | user-replaceable |
Battery Information
| Backup/Run Time (Full Load) | 6.40 Minute |
| Backup/Run Time (Half Load) | 15.60 Minute |
| Hot Swappable | Yes |
Most orders ship within 1-2 Business Days! We ship both UPS Ground and Truck Freight depending on the weight of the order.
Please note some products may ship directly from the manufacturer and require a longer lead time for shipping.
Q: How long will this UPS keep my equipment running during a power outage?
A: The backup runtime depends on your load. At full load capacity (700 W), the UPS provides 6.40 minutes of runtime. At half load, it provides 15.60 minutes of runtime.
Q: What is the power capacity of this UPS?
A: This UPS has a load capacity of 1000 VA and 700 W.
Q: How many outlets does this UPS have?
A: The UPS has 6 NEMA 5-15R receptacles.
Q: What types of power problems does this UPS protect against?
A: This UPS provides protection against under voltage, surge, over voltage, EMI/RFI, brownout, and blackout conditions. It has a surge energy rating of 570 J.
Q: What communication options does this UPS have?
A: The UPS includes USB and RS-232 serial ports that work with PowerAlert software to communicate detailed UPS status and site power conditions.
Q: What is included in the package?
A: The package includes the SMC10002URM UPS System, a USB Cable, 2 & 4 Post Rackmount Installation Hardware, and an Instruction Manual.
Q: Can the battery be replaced?
A: Yes, the UPS features user-replaceable battery management and hot-swappable capability.
Q: What are the physical dimensions and weight of this UPS?
A: The UPS measures 17.35" wide × 12.50" deep × 3.45" high, occupies 2U of rack height, and weighs approximately 35.40 lb.
