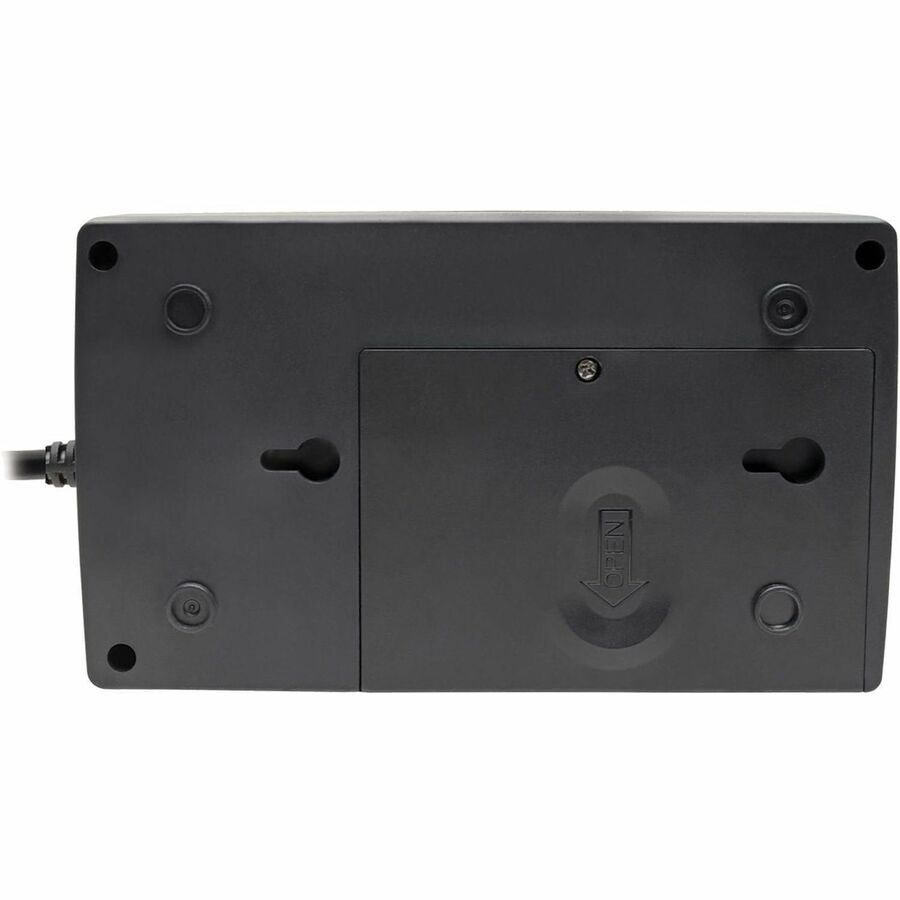

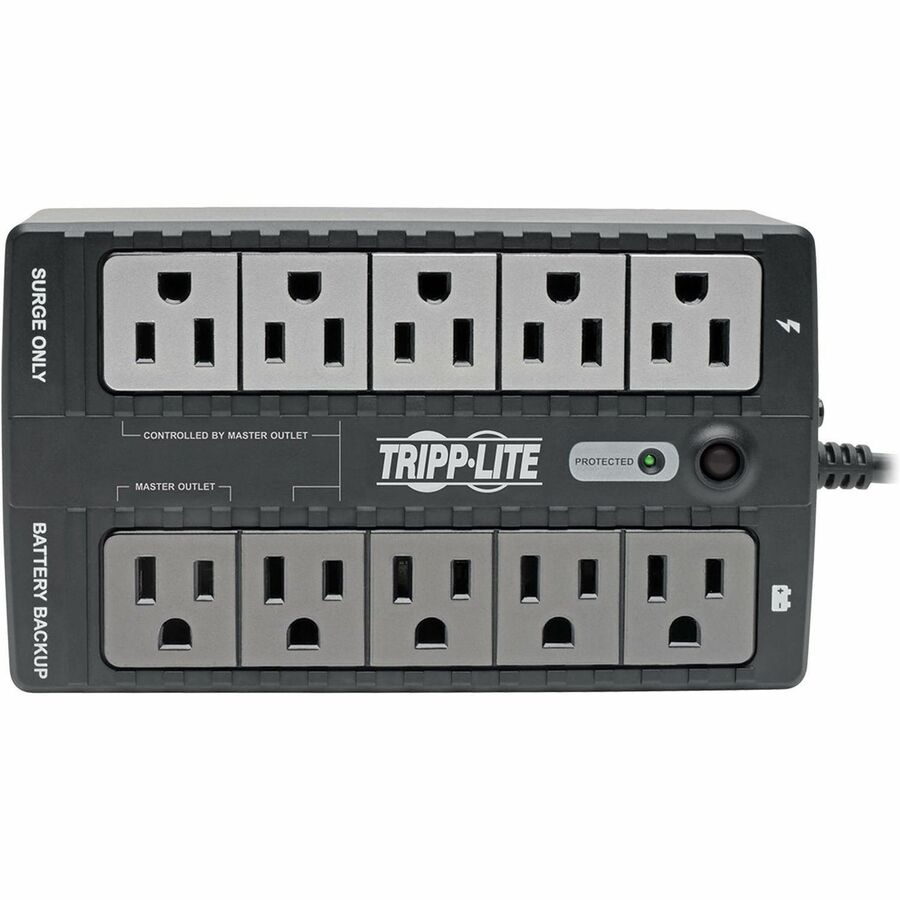

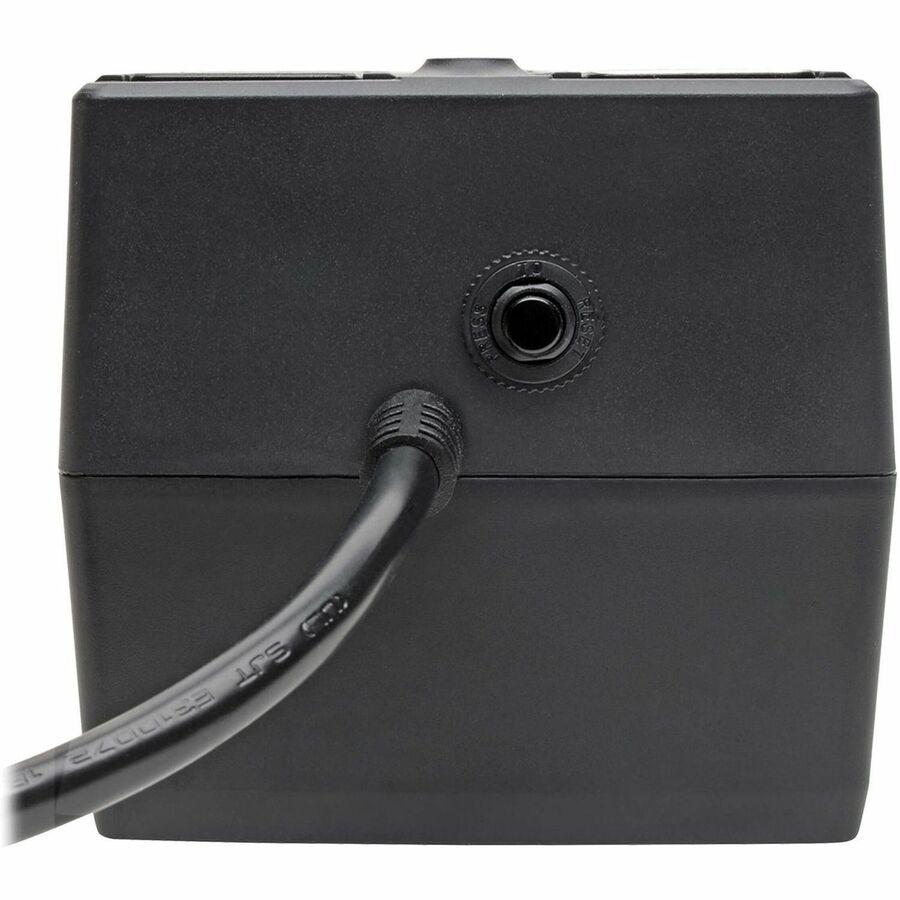

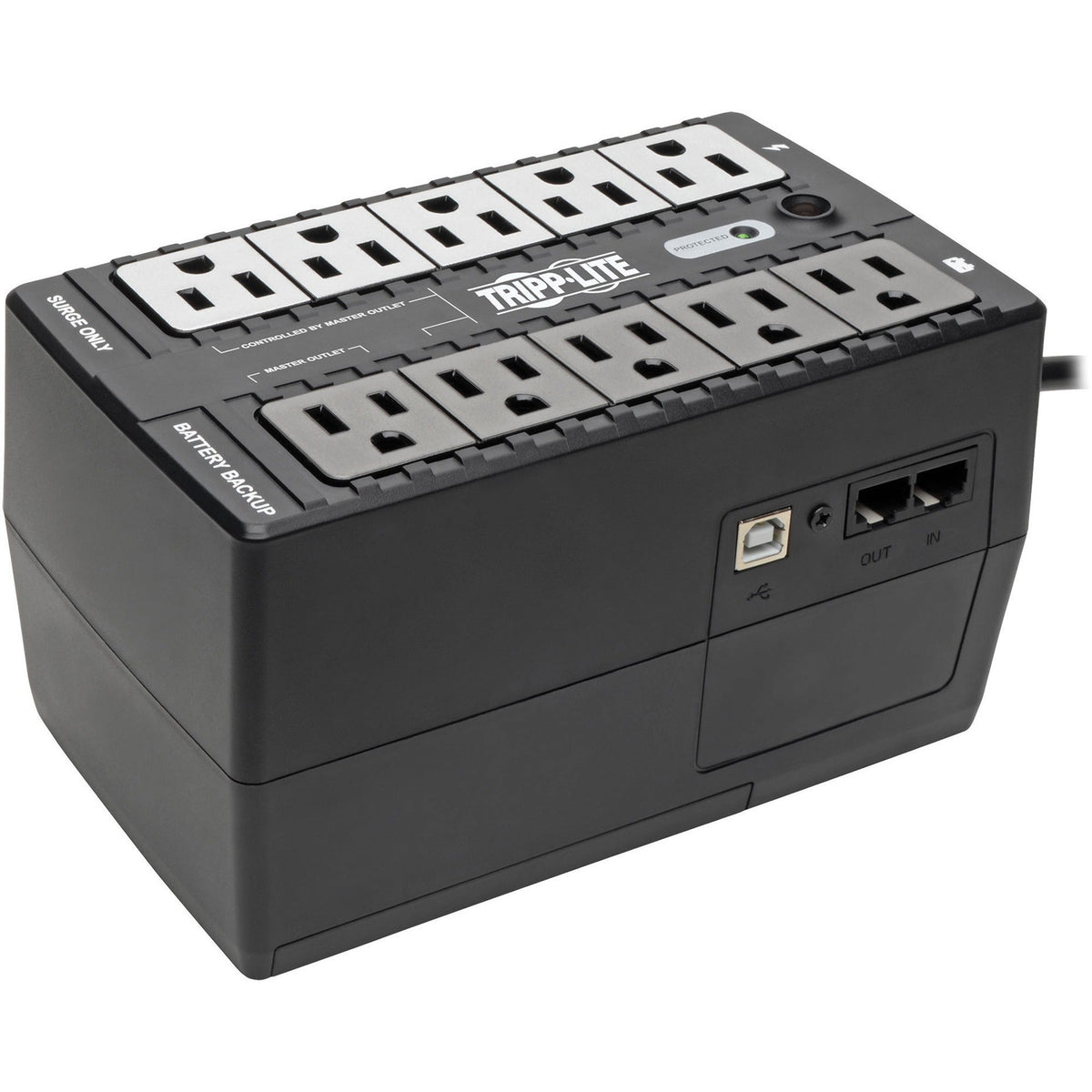

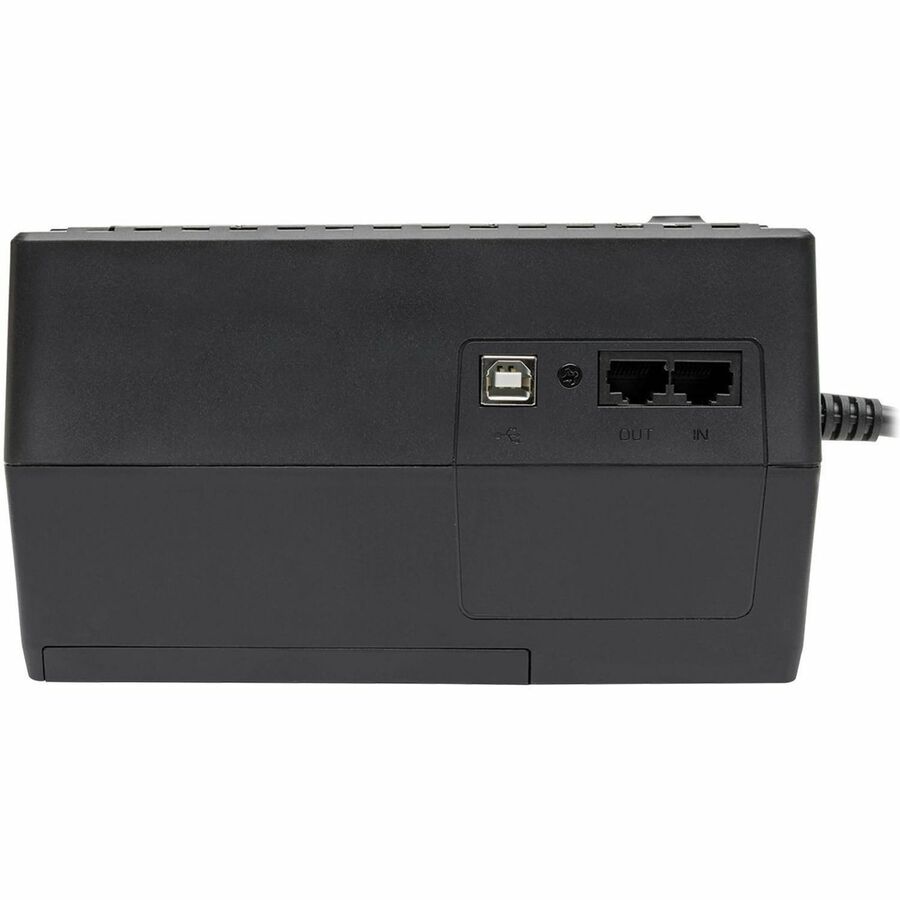

Tripp Lite series ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS
- Green UPS protects PCs from blackouts, brownouts and surges and saves up to $50 annually on energy costs!
- 3 built-in ECO outlets automatically power off accessories when computer is not in use; 99% efficient
- USB communication port works with free PowerAlert software for unattended automatic shutdown
- 550VA/300W power capacity; 8 outlets (4 UPS/Surge; 4 Surge-only) and tel/DSL; 10-minute, 1/2-load runtime
- $100k Ultimate Lifetime Insurance; 3-year warranty
Regular price
$147.99
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing
Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes four battery-supported outlets for computer, monitor and two vital system peripherals, plus four additional surge suppression-only outlets for accessories not requiring battery support. Three of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. UPS system meets RoHS standards. 550VA/300-watt power handling ability supports entry-level PC systems for up to 17 minutes during power fail conditions.
- Green UPS protects PCs from blackouts, brownouts and surges and saves up to $50 annually on energy costs!
- 3 built-in ECO outlets automatically power off accessories when computer is not in use; 99% efficient
- USB communication port works with free PowerAlert software for unattended automatic shutdown
- 550VA/300W power capacity; 8 outlets (4 UPS/Surge; 4 Surge-only) and tel/DSL; 10-minute, 1/2-load runtime
- $100k Ultimate Lifetime Insurance; 3-year warranty
Enhanced Overview
About the Brand
Specifications
| Product Family | ECO |
Controls/Indicators
| Status Indicators | 2 LED Indicator:
Main Power Switch Controls :
|
Physical Characteristics
| Product Color | Black |
| Color Family | Black |
| Height | 4.13" |
| Width | 4.33" |
| Depth | 7.28" |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 5.20 lb |
Miscellaneous
| Package Contents | |
| Software Included | PowerAlert software available via free download |
| Additional Information |
|
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Certifications & Standards | Tested to :
|
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Recycled | No |
| Assembly Required | No |
General Information
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | ECO550UPS |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Series | ECO |
| Product Model | ECO550UPS |
| Product Name | ECO550UPS 550VA Ultra-compact Desktop/Tower/Wall Mount UPS |
| Packaged Quantity | 1 Each |
| Product Type | Standby UPS |
Power Description
| Load Capacity (VA) | 550 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 316 J |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 2 year $100,000 connected equipment guarantee |
Battery Information
| DC System Voltage | 12 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 1.20 Minute |
| Backup/Run Time (Half Load) | 5 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 6.50 Hour |
| Replaceable Battery | Yes |
Interfaces/Ports
| USB | Yes |
| USB (HID Compliant) Port | Yes |
Environmental Conditions
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Storage Elevation | 6561 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 133°F (56.1°C) |
| Sound Emission | 40 dB |
| Thermal Dissipation | 1.17 W |
Management
| Alarm | Low Battery |
| Alarm | Overload |
| Alarm | Battery Fault |
Technical Information
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Number of Surge-only Outlets | 5 |
| Dataline Protection | RJ-11 |
| Overload Protection | Yes |
| Cord Length | 6 ft |
| Protection Type | Power Failure |
| Protection Type | Brownout |
| Protection Type | EMI / RFI |
| Transfer Time | 6 ms |
| Phase | Single Phase |
| Application/Usage | Computer Peripheral |
| Application/Usage | Hospital |
| Application/Usage | Retail |
