Ships in 1-3 Days
Energy Star Certified
Input Voltage: 120 V AC
USB: Yes
Series: ECO

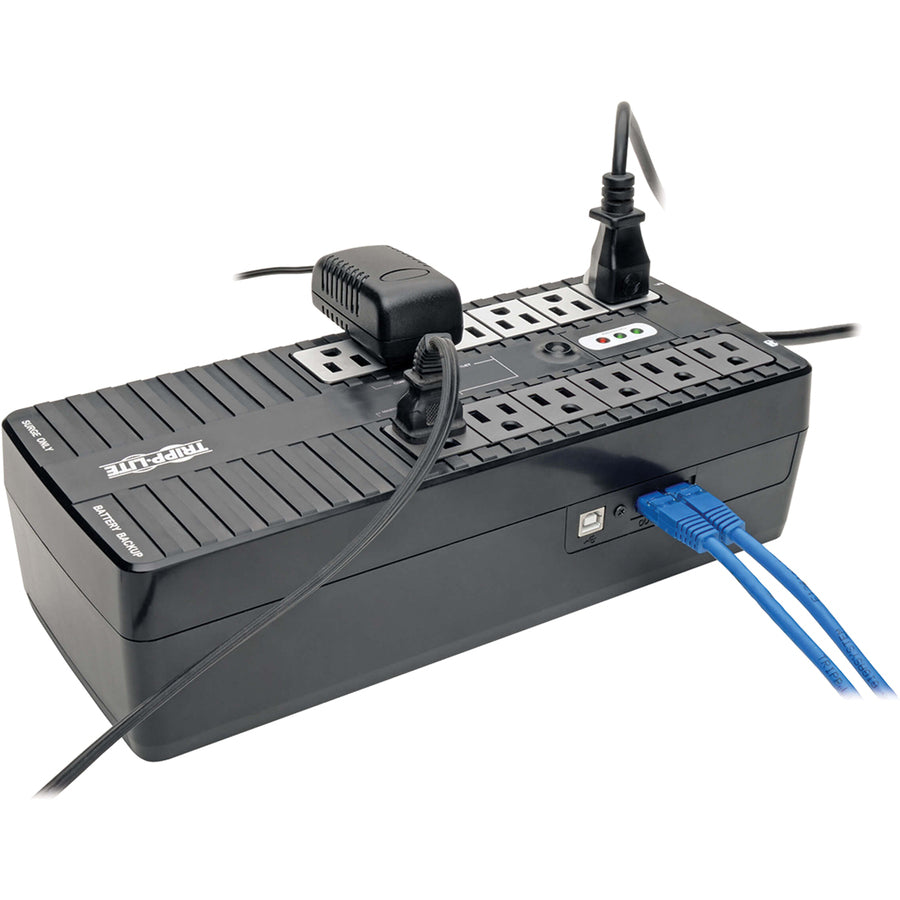

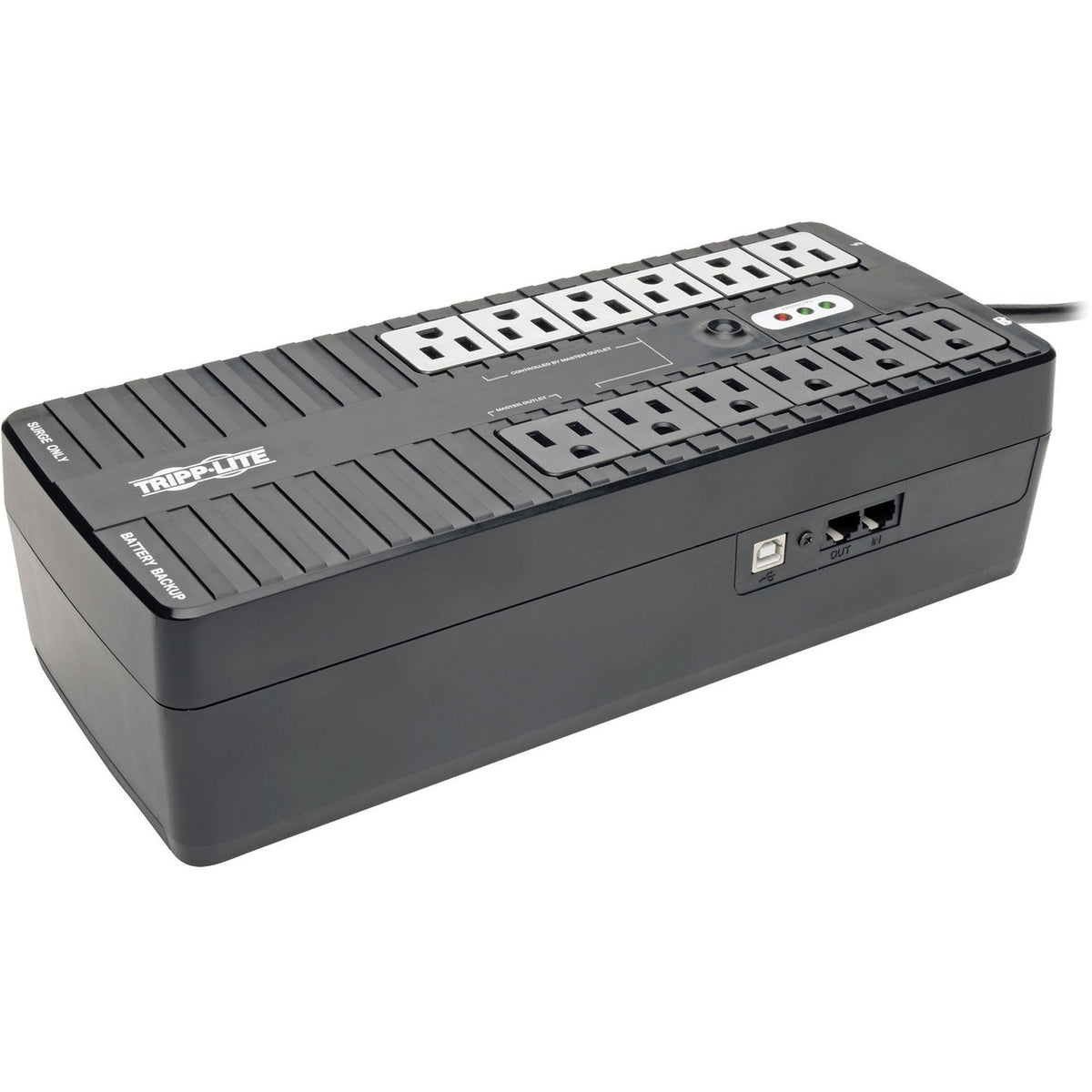

Tripp Lite series ECO 750VA Desktop UPS
- Green UPS protects PCs from blackouts, brownouts and surges and saves up to $50 annually on energy costs
- 4 built-in ECO outlets automatically power off accessories when computer is not in use; 99% efficient
- USB communication port works with free PowerAlert software for unattended automatic shutdown
- 750VA/450W power capacity; 12 outlets (6 UPS/Surge; 6 Surge-only) and tel/DSL; 11.5-minute, 1/2-load runtime
- $100k Ultimate Lifetime Insurance; 3-year warranty
Regular price
$180.99
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing

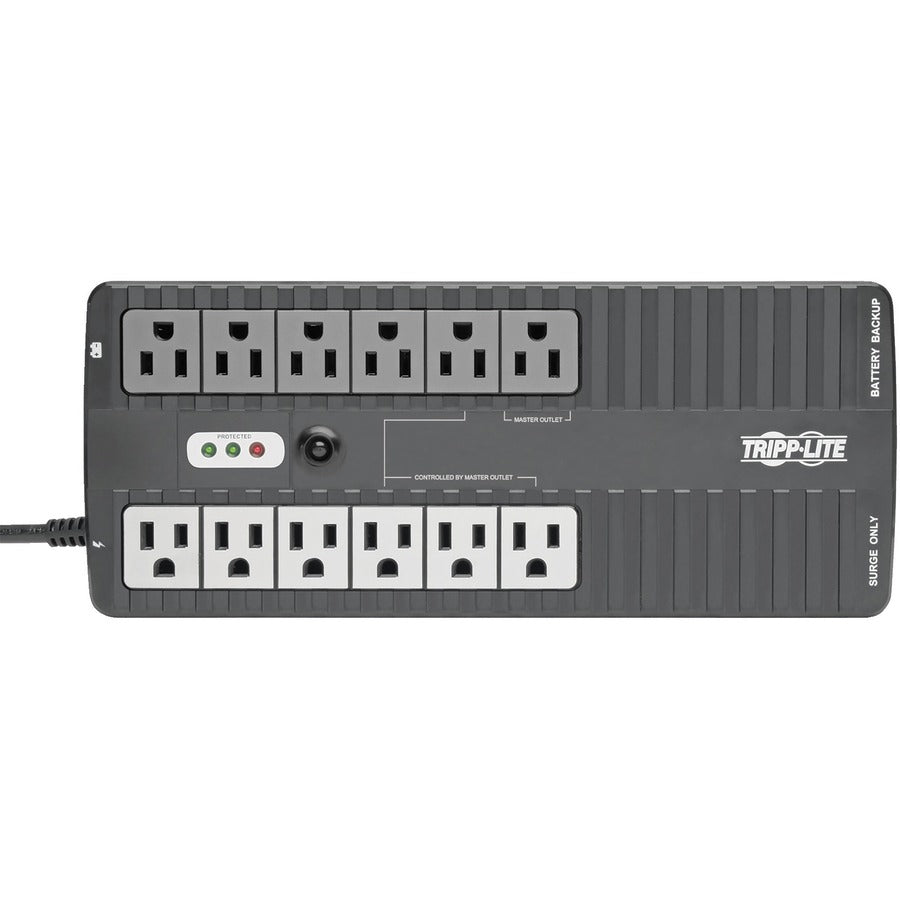

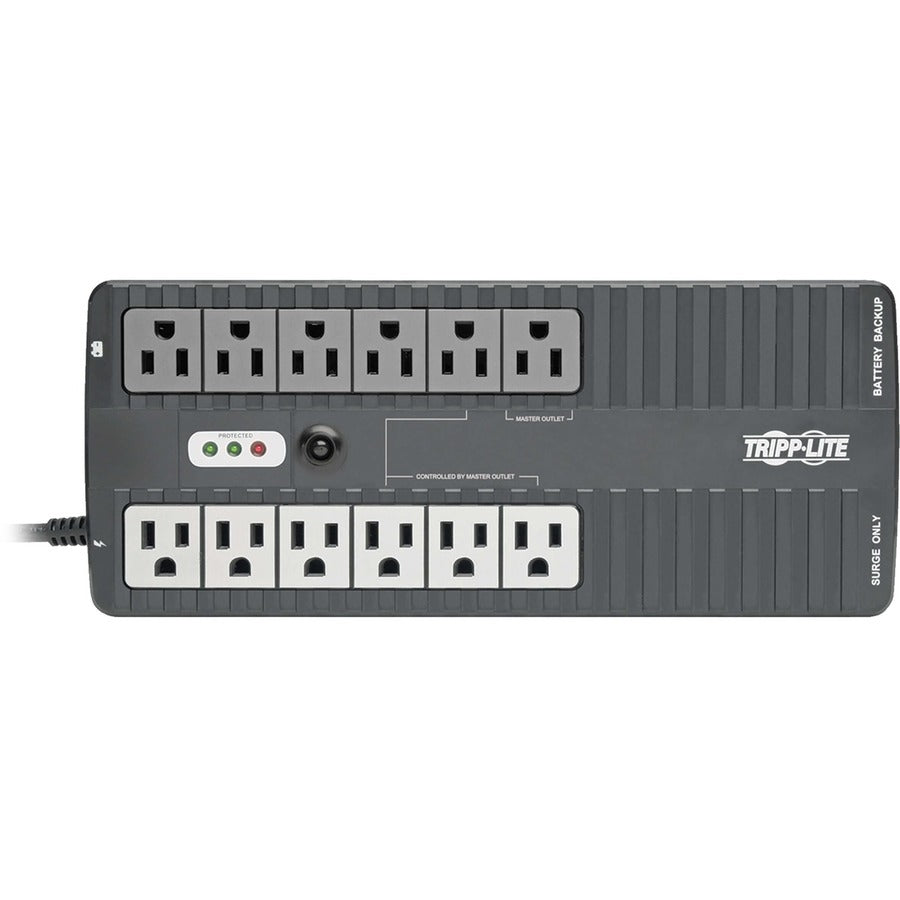

Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes six battery-supported outlets for computer, monitor and four vital system peripherals, plus six additional surge suppression-only outlets for accessories not requiring battery support. Four of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. Built-in, single-line RJ11 phone suppression protects modem, fax machine, cordless phone or other accessories with a dialup/DSL phone connection. UPS system meets RoHS standards. 750VA/450-watt power handling ability supports entry-level PC systems for up to 45 minutes during power fail conditions.
- Green UPS protects PCs from blackouts, brownouts and surges and saves up to $50 annually on energy costs
- 4 built-in ECO outlets automatically power off accessories when computer is not in use; 99% efficient
- USB communication port works with free PowerAlert software for unattended automatic shutdown
- 750VA/450W power capacity; 12 outlets (6 UPS/Surge; 6 Surge-only) and tel/DSL; 11.5-minute, 1/2-load runtime
- $100k Ultimate Lifetime Insurance; 3-year warranty
Enhanced Overview
About the Brand
Specifications
| Product Family | ECO |
Controls/Indicators
| Status Indicators | 3 Status LEDs; GREEN #1 LED reports ECO mode off/on status; GREEN #2 LED reports line/battery mode operation, low-battery condition, overload and replace-battery notifications; RED LED reports battery-low, overload, replace-battery and fault conditions |
Miscellaneous
| Package Contents |
|
| Additional Information |
|
| Energy Star | Yes |
| Country of Origin | China |
| Certifications & Standards | UL Listed Certification |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Recycled | No |
| Assembly Required | No |
General Information
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | ECO750UPS |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Series | ECO |
| Product Name | ECO 750VA Desktop UPS |
| Packaged Quantity | 1 Each |
| Product Type | Standby UPS |
Power Description
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 450 W |
| Input Voltage | 120 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 120 V AC |
| Output Voltage | 110 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 316 J |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | 2 year $100,000 connected equipment guarantee |
Battery Information
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 8.60 Minute |
| Typical Battery Recharge Time | 6.50 Hour |
| Replaceable Battery | Yes |

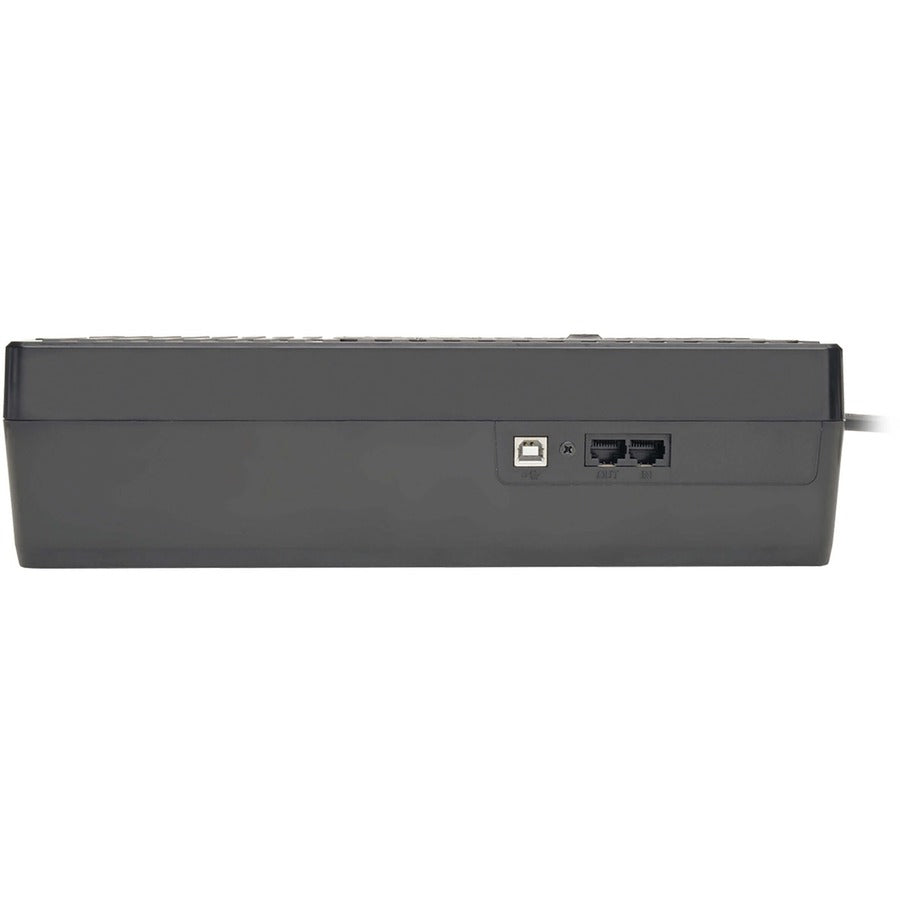

Interfaces/Ports
| USB | Yes |
| USB (HID Compliant) Port | Yes |
Environmental Conditions
| Maximum Operating Elevation | 10000 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
Physical Characteristics
| Height | 3.35" |
| Width | 5.12" |
| Depth | 12.20" |

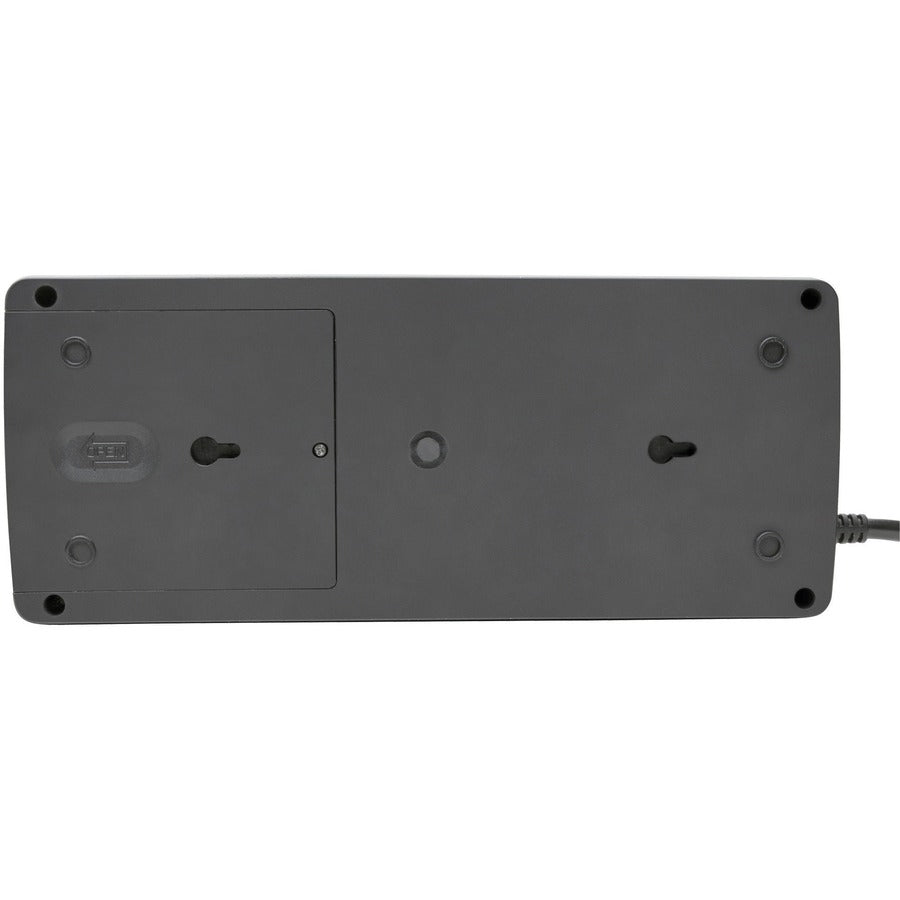

| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 6.82 lb |
Management
| Alarm | Fault |
| Alarm | Low Battery |
| Alarm | Overload |
| Alarm | Replace Battery |
Technical Information
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 12 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 6 |
| Number of Surge-only Outlets | 6 |
| Dataline Protection | RJ-45 |
| Dataline Protection | RJ-11 |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets |
| Application/Usage | Router |
| Application/Usage | Printer |
| Application/Usage | Kiosk |
| Application/Usage | Security System |
| Application/Usage | TV |
| Application/Usage | Gaming Console |
| Application/Usage | Digital Signage |
| Application/Usage | Computer |
| Application/Usage | Business |
| Application/Usage | Blu-ray Player |
| Application/Usage | ATM |
