Ships in 1-3 Days
Input Voltage: 120 V AC
Color: Black
USB: Yes
Series: AVR
Tripp Lite series Desktop/Wall Mount Battery Backup Outlets
- UPS circuits prevent interruption or data loss during power failures
- AVR power conditioning keeps operation during brownouts and overvoltages
- Surge-only outlets offer protection for items not requiring battery support
- AC and dataline surge suppression prevents connected equipment damage
- Perfect for protecting desktop computers, network workstations and more
Regular price
$145.99
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing

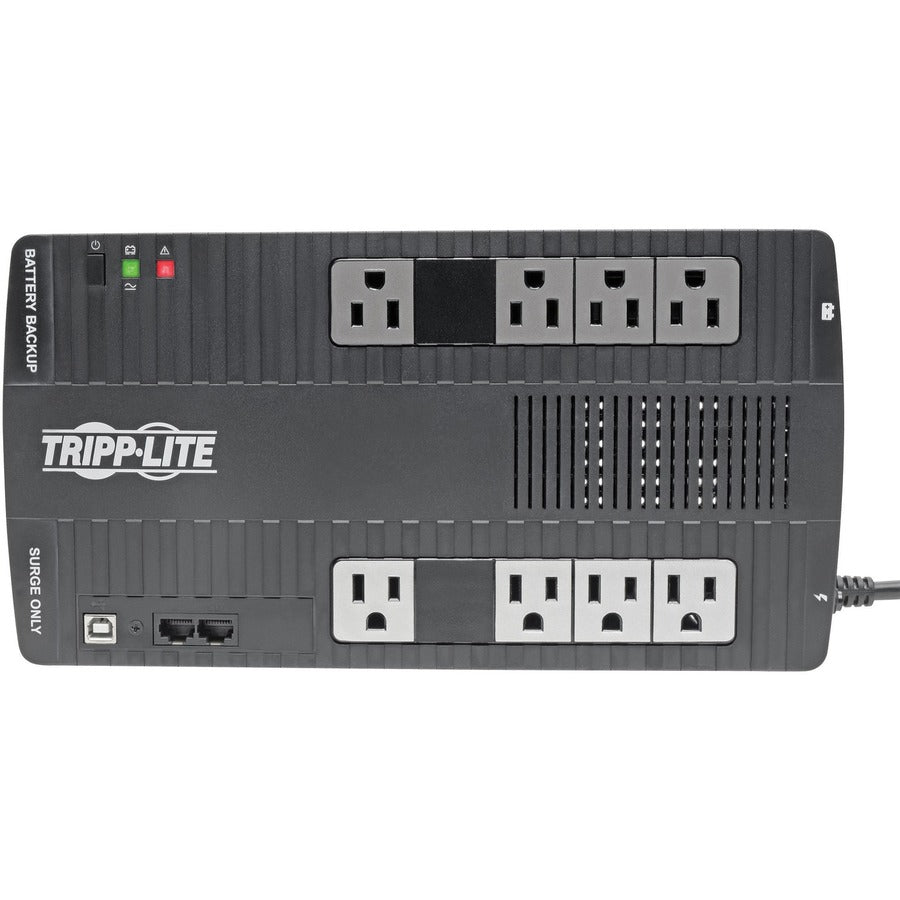

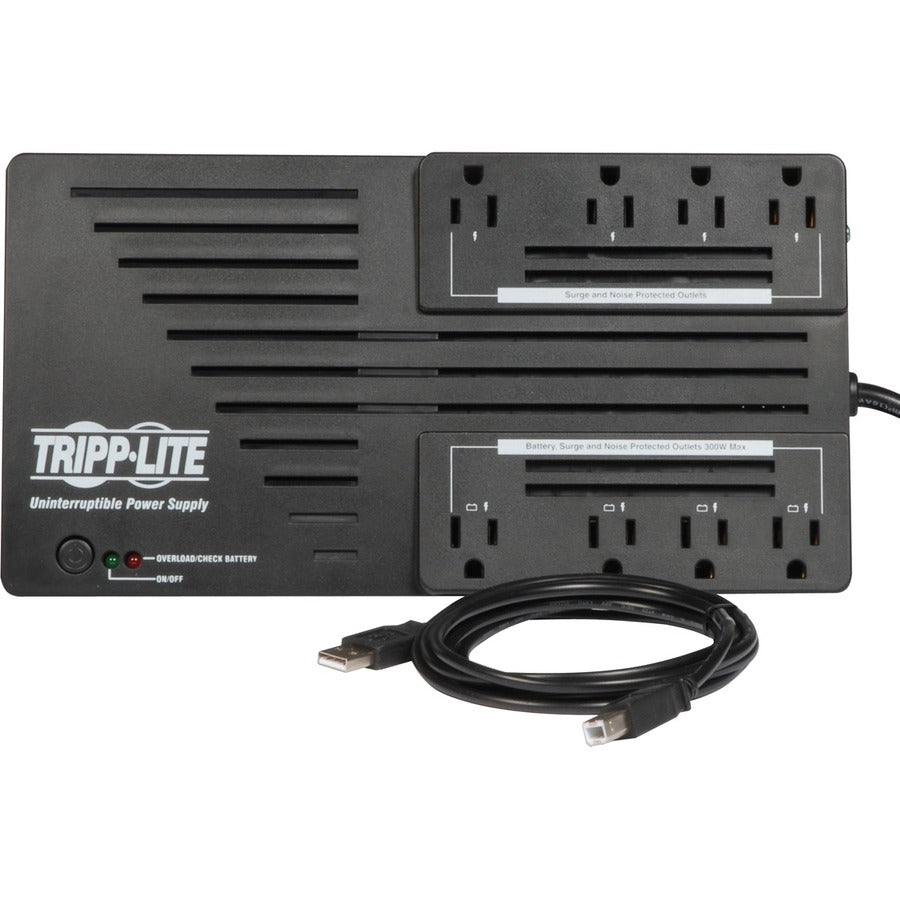

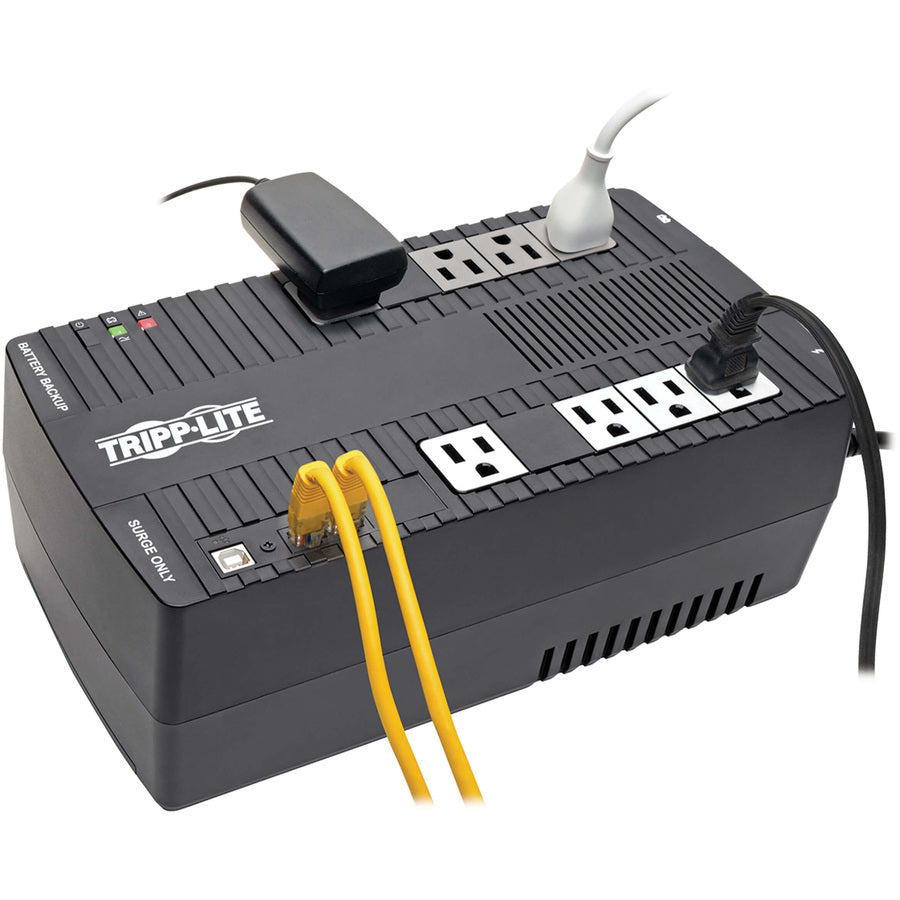

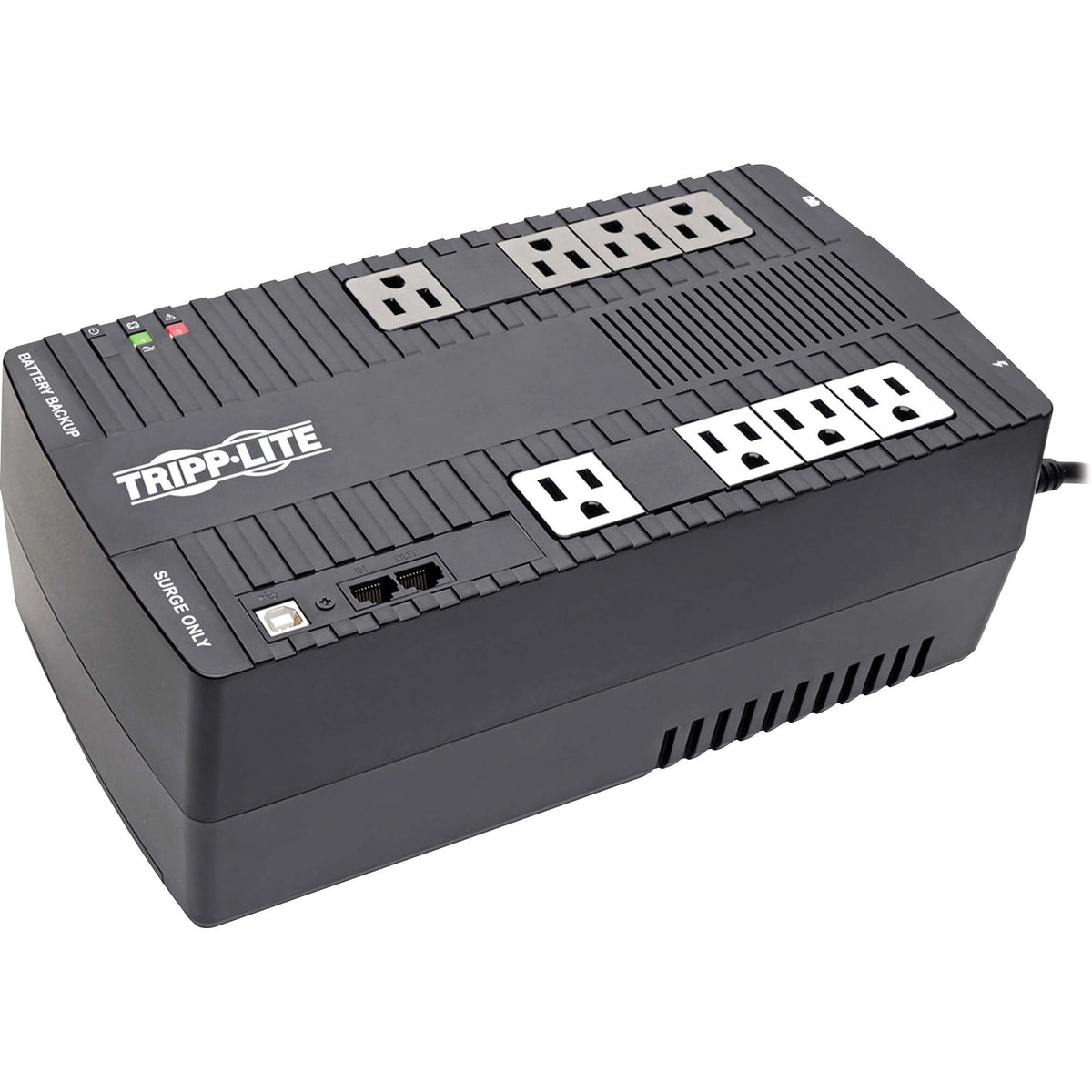

AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.
- UPS circuits prevent interruption or data loss during power failures
- AVR power conditioning keeps operation during brownouts and overvoltages
- Surge-only outlets offer protection for items not requiring battery support
- AC and dataline surge suppression prevents connected equipment damage
- Perfect for protecting desktop computers, network workstations and more
Enhanced Overview
About the Brand
Specifications
| Product Family | AVR |
Technical Information
| AVR | Yes |
| AVR Range | Boost +18% / Buck -15% |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Number of Surge-only Outlets | 4 |
| Dataline Protection | RJ-11 |
| Cord Length | 6 ft |
| Transfer Time | 6 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS |
| Application/Usage | Media Center |
| Application/Usage | Gaming Console |
| Application/Usage | Home Theater |
| Application/Usage | Home/Office |
| Application/Usage | TV |
| Application/Usage | Digital Signage |
| Application/Usage | Speaker |
| Application/Usage | Security System |
| Application/Usage | Router |
| Application/Usage | Printer |
| Application/Usage | ATM |
| Application/Usage | Blu-ray Player |
| Application/Usage | Computer |
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
| Height | 4.33" |
| Width | 6.40" |
| Depth | 12" |
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| Weight (Approximate) | 13.69 lb |
Controls/Indicators
| Status Indicators | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions |
Battery Information
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 9 Minute |
| Battery Life | 6 Year |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
Miscellaneous
| Package Contents |
|
| Software Included | PowerAlert UPS monitoring software |
| Additional Information |
|
| Country of Origin | China |
| Certifications & Standards |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Recycled | No |
| Assembly Required | No |
Warranty
| Limited Warranty | 3 Year Lifetime |
| Additional Warranty Information | 2-year warranty. $100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only). |
Power Description
| Load Capacity (VA) | 550 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Input Current | 12 A |
| Output Voltage | 120 V AC |
| Output Voltage | 115 V AC |
| Output Voltage | 110 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 316 J |
General Information
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | AVR550U |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Series | AVR |
| Product Model | AVR550U |
| Product Name | Desktop/Wall Mount Battery Backup Outlets |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
Environmental Conditions
| Maximum Operating Elevation | 10000 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
Interfaces/Ports

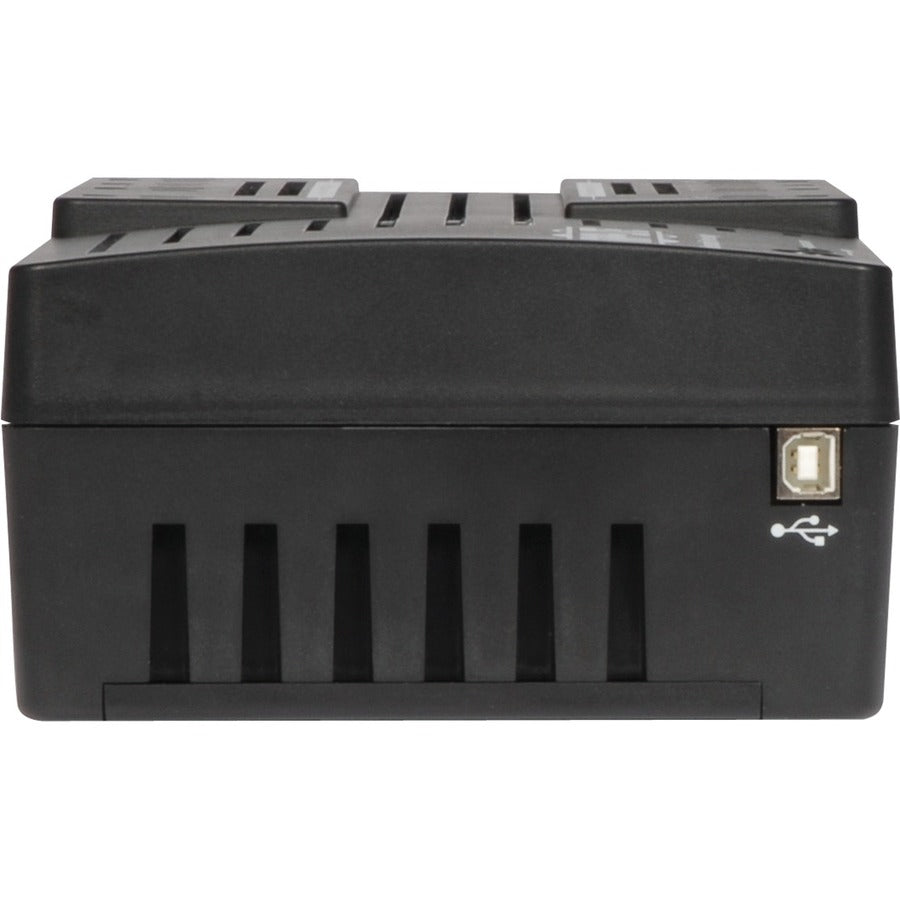

| USB | Yes |
| USB (HID Compliant) Port | Yes |
Management
| Alarm | Battery Backup |
| Alarm | Replace Battery |
| Alarm | Fault |
| Alarm | Low Battery |
| Alarm | Overload |
