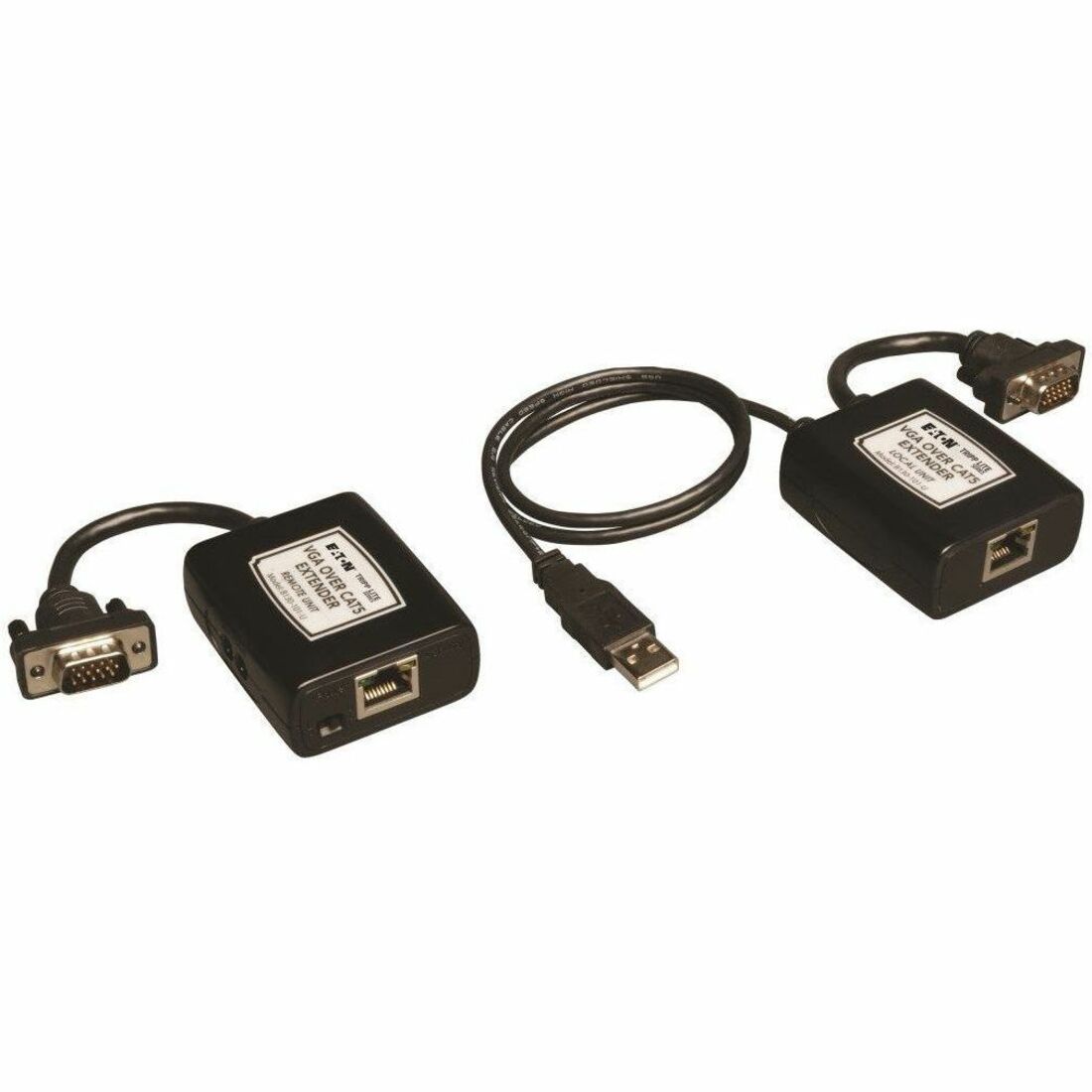

Tripp Lite series B130-101-U TAA / GSA Video Extender/Console - 1 Input Device - 1 Output Device - 500 ft Range
- Easy-to-use design allows your device to be connected up to 500' away
- USB power eliminates need to use external AC adapter
- Built-in VGA dongles remove need for additional VGA cables

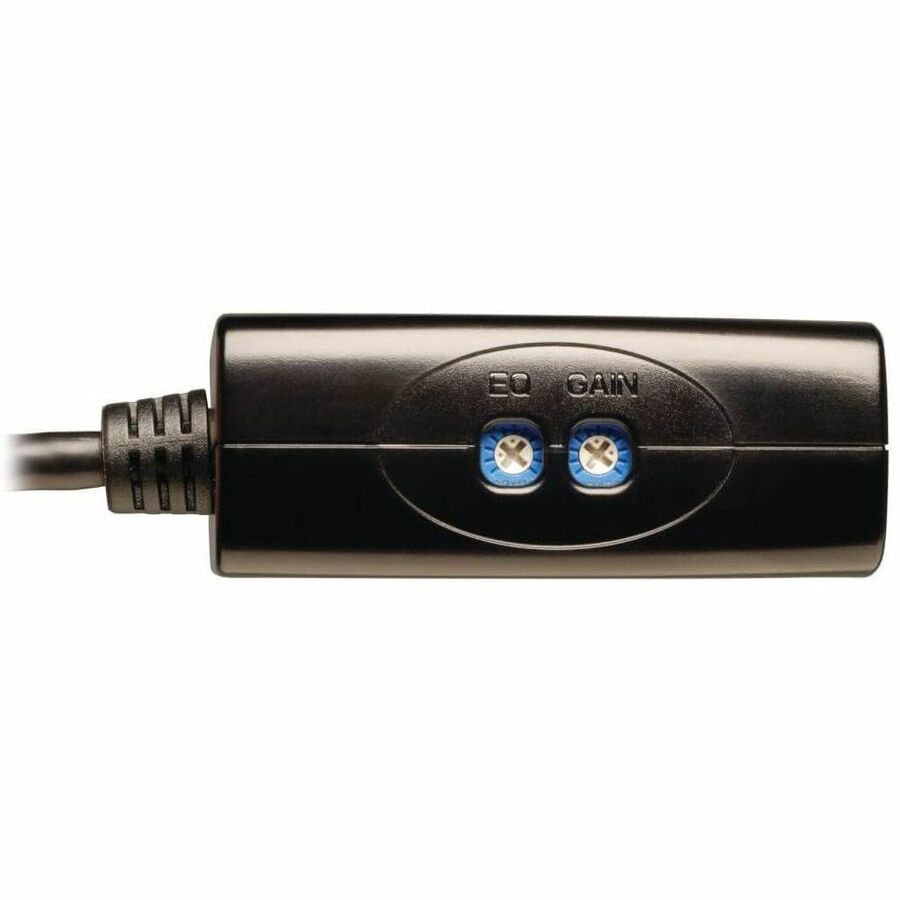

- Equalization and Gain controls ensure clear, sharp images
- Perfect for digital signage, classroom projectors and more
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing
- Easy-to-use design allows your device to be connected up to 500' away
- USB power eliminates need to use external AC adapter
- Built-in VGA dongles remove need for additional VGA cables
- Equalization and Gain controls ensure clear, sharp images
- Perfect for digital signage, classroom projectors and more
Enhanced Overview
About the Brand
Miscellaneous
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Certifications & Standards |
|
Physical Characteristics
| Color Family | Black |
| Product Color | Black |
Technical Information
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 500 ft |
Warranty
| Limited Warranty | 1 Year |
| Additional Warranty Information | 1 year limited warranty |
General Information
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B130-101-U |
| Manufacturer Website Address | http://www.eaton.com |
| Brand Name | Tripp Lite series |
| Product Model | B130-101-U |
| Product Name | B130-101-U TAA / GSA Video Extender/Console |
| Packaged Quantity | 1 Each |
| Product Type | Video Extender Transmitter/Receiver |
Media & Performance
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6 |
Interfaces/Ports
| Network (RJ-45) | Yes |
| VGA In | Yes |
| VGA Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 1 |
| Number of VGA Inputs | 1 |
| Number of VGA Outputs | 1 |
Video
| Maximum Video Resolution | 1920 x 1440 |
Most orders ship within 1-2 Business Days! We ship both UPS Ground and Truck Freight depending on the weight of the order.
Please note some products may ship directly from the manufacturer and require a longer lead time for shipping.
Q: What is the maximum distance this extender can transmit a VGA signal?
A: The maximum operating distance is 500 ft when using 24AWG, solid wire Cat5e/6 cable. However, at higher resolutions (1920 x 1440 at 60Hz), the extender can reach up to 350 ft, while lower resolutions (1024 x 768 at 60Hz) can extend up to 500 ft.
Q: Do I need an external power adapter for this extender?
A: No. The extender draws power directly from a USB connection at the computer, eliminating the need for an external AC adapter.
Q: What is included in the package?

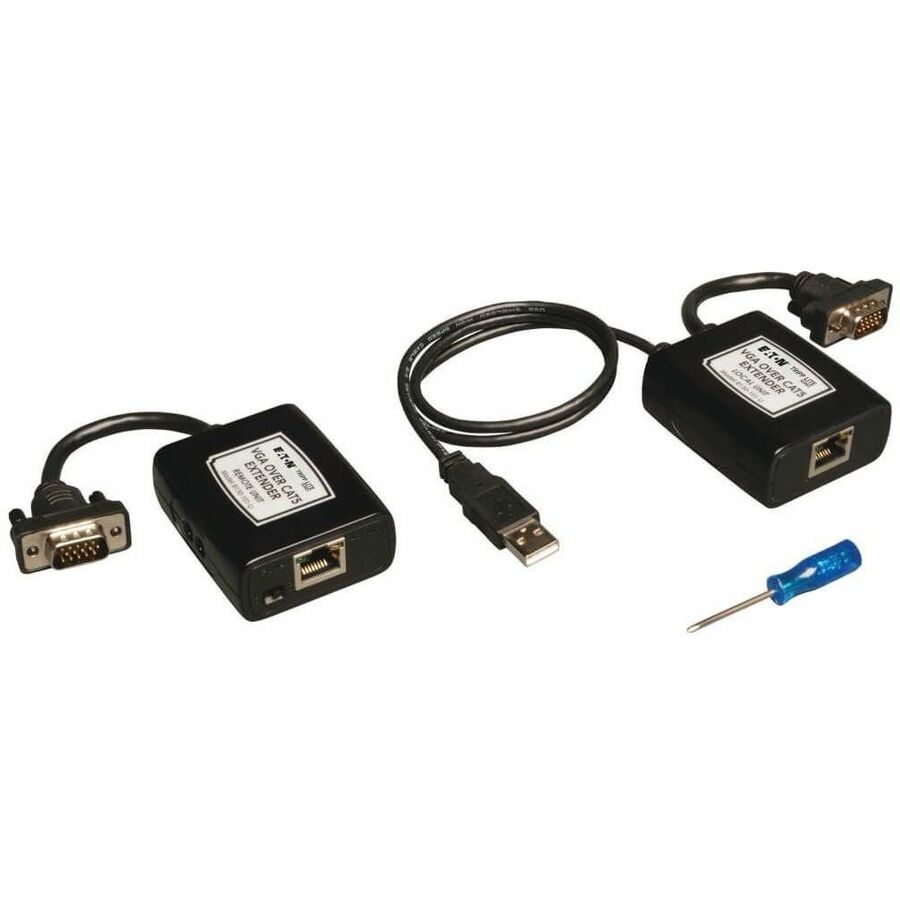

A: The package includes a VGA Over Cat5 Transmitter, a VGA Over Cat5 Receiver, and an EQ and GAIN Adjustment Screwdriver.
Q: What type of cable do I need to use with this extender?
A: You should use 24AWG, solid wire Cat5e/6 cable (sold separately).
Q: What video resolutions does this extender support?
A: The maximum video resolution supported is 1920 x 1440. The extender can transmit 1920 x 1440 at 60Hz up to 350 ft, or 1024 x 768 at 60Hz up to 500 ft.
Q: Does this product come with VGA cables?
A: No, VGA cables are not included. However, the extender kit includes built-in VGA dongles that allow for direct attachment to video equipment without requiring a VGA cable.
Q: What warranty does this product have?
A: This product includes a 1 year limited warranty.
Q: Is this product GSA and TAA compliant?
A: Yes, this product is both GSA and TAA compliant.
