Interface: PCI Express 2.0 x2
WEEE Compliant
REACH SVHC Free

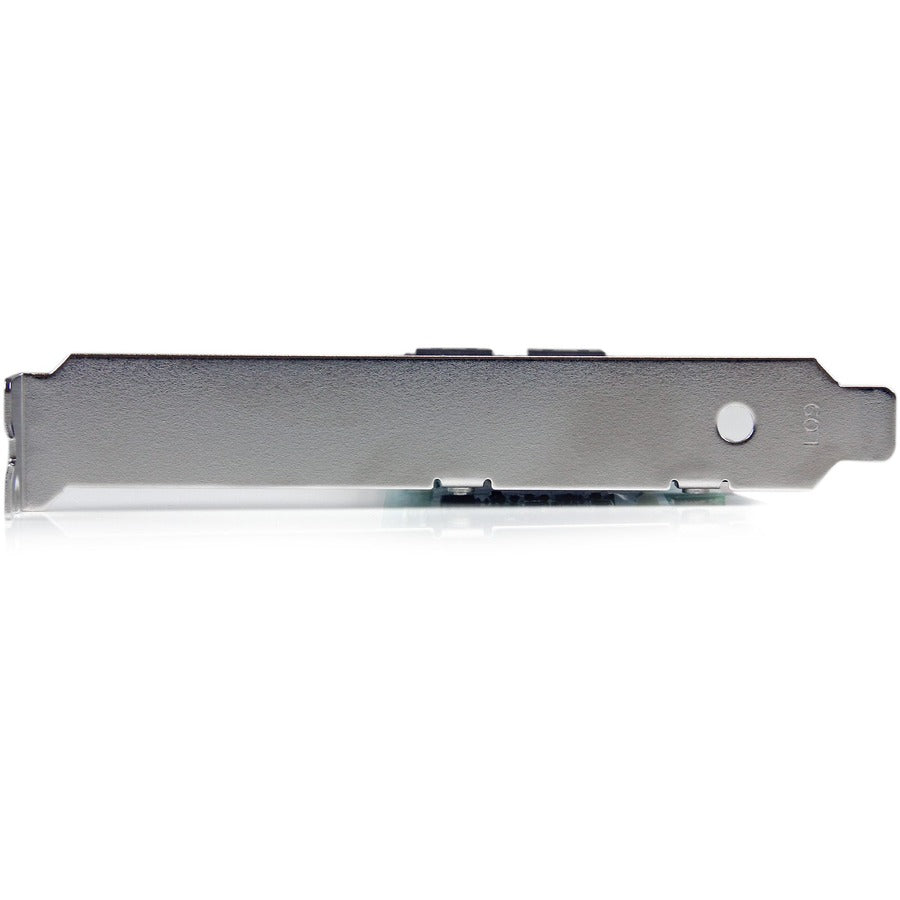

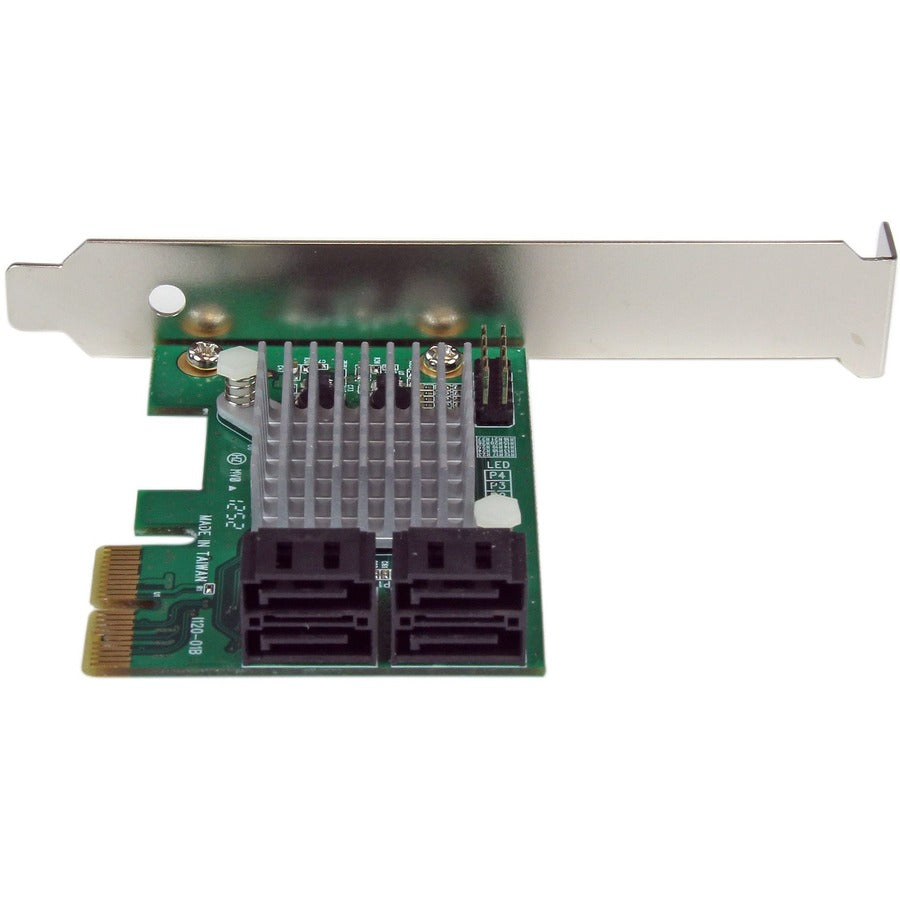

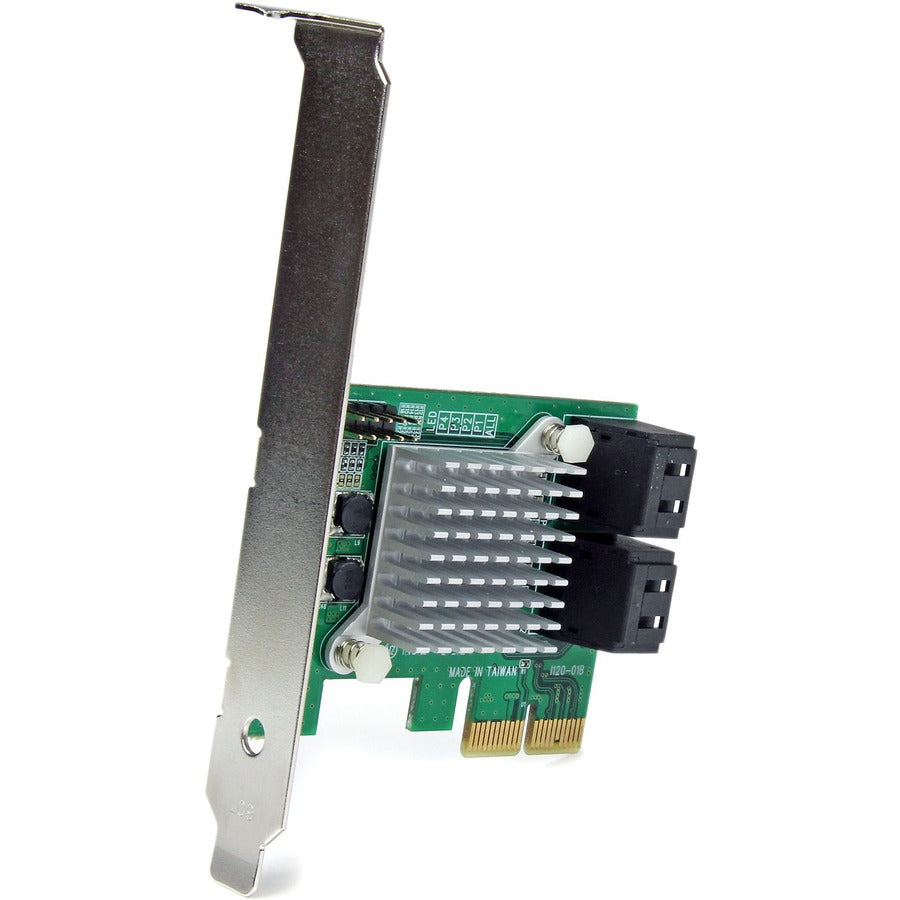

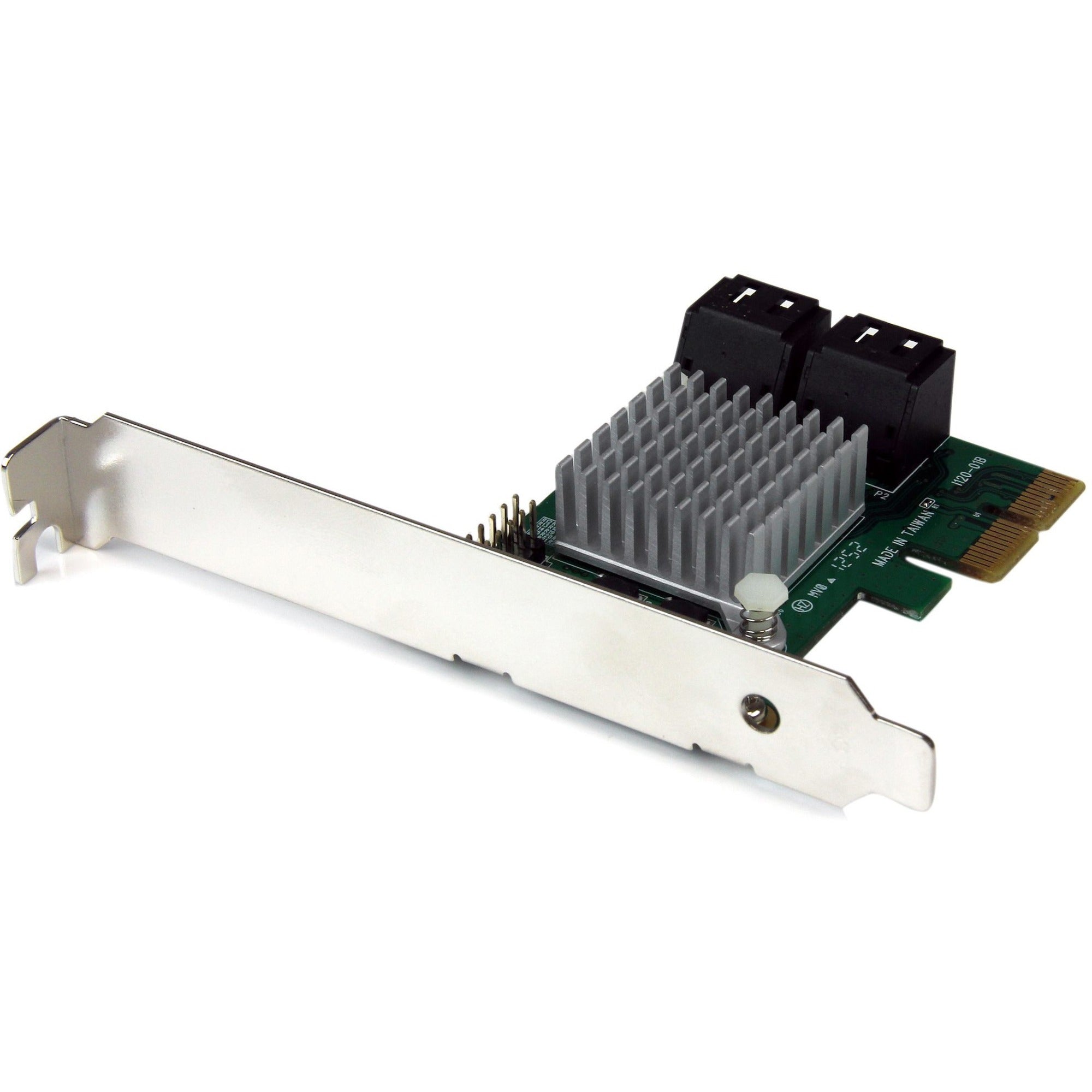

StarTech.com 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink
- EASY INSTALL: Expansion card includes full and low-profile brackets for PCIe slot compatibility - Marvell Storage Utility software included for card configuration and drive management
- THE IT PRO'S CHOICE: IT professionals choice for over 30 years; This SATA PCIe adapter controller card converter is backed for 2 years, including free 24/5 North America based multi-lingual assistance
Regular price
$154.99
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing
The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs). Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.) The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support. Throughput Benchmark Drive configuration Throughput Drive size 1 x HDD 112.81 MB/s 2 TB 1 x SSD 490.28 MB/S 120 GB 1 x HDD + 1 x SSD HyperDuo (Safe Mode) 489.28 MB/s 2 TB 1 x HDD + 2 x SSD HyperDuo (Safe Mode) 715.13 MB/s 2 TB Drives Used: SSD: OCZ Vertex 3 Series 2.5" 120 GB (VTX3-25SAT3-120G) HDD: Western Digital Caviar Green 3.5" 2 TB (WD20EARS) Software Used: IO Meter, 256KB Sequential Read, queue depth = 10 This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support. More from the Manufacturer
- EASY INSTALL: Expansion card includes full and low-profile brackets for PCIe slot compatibility - Marvell Storage Utility software included for card configuration and drive management
- THE IT PRO'S CHOICE: IT professionals choice for over 30 years; This SATA PCIe adapter controller card converter is backed for 2 years, including free 24/5 North America based multi-lingual assistance
Enhanced Overview
About the Brand
Warranty
| Limited Warranty | 2 Year |
General Information
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEXSAT34RH |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink |
| Packaged Quantity | 1 Each |
| Product Type | SATA Controller |
Technical Information
| Host Interface | PCI Express 2.0 x2 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | JBOD |
| RAID Levels | 1+0 |
| RAID Levels | 1 |
| RAID Levels | 0 |
Physical Characteristics
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| Height | 0.8" |
| Width | 4.7" |
| Length | 2.8" |
| Weight (Approximate) | 1.70 oz |
Miscellaneous
| Package Contents |
|
| Platform Supported | Linux |
| Platform Supported | Mac |
| Platform Supported | PC |
| Additional Information | OS Compatibility: |
| Environmentally Friendly | Yes |
| Compatibility | OS Compatibility:
|
| Environmental Certification | EU RoHS |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| End of Life Manual Availability | Yes |
| REACH Declaration URL | https://media.startech.com/cms/pdfs/pexsat34rh_rohs.pdf |
| REACH free of SVHC | Yes |
| WEEE Statement | https://media.startech.com/cms/pdfs/pexsat34rh_weee.pdf |
Interfaces/Ports
| Total Number of SATA Ports | 4 |
| Number of SATA Ports (Internal) | 4 |
