Ships in 1-2 Days
Eco-Friendly
Input Voltage: 208 V AC & 240 V AC
Color: Black
Battery: Lead Acid
Series: RT

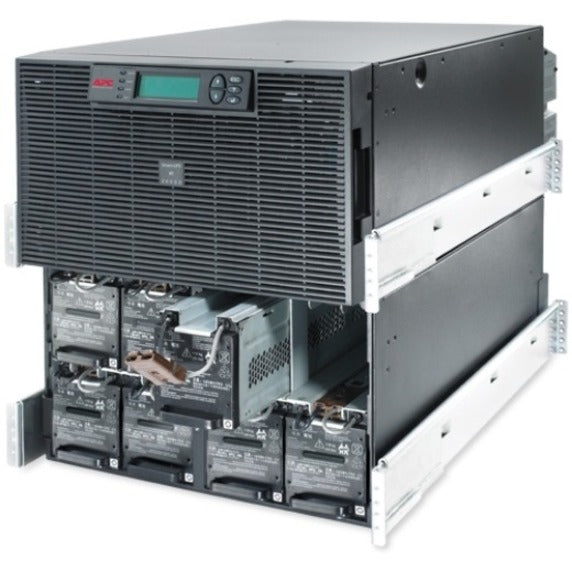

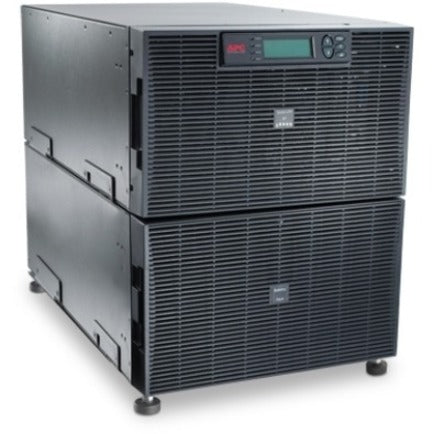

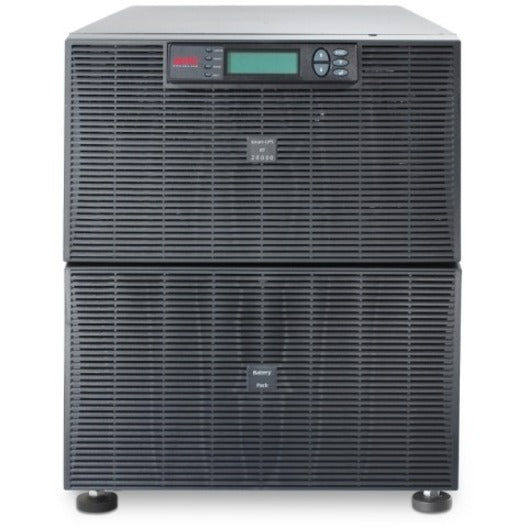

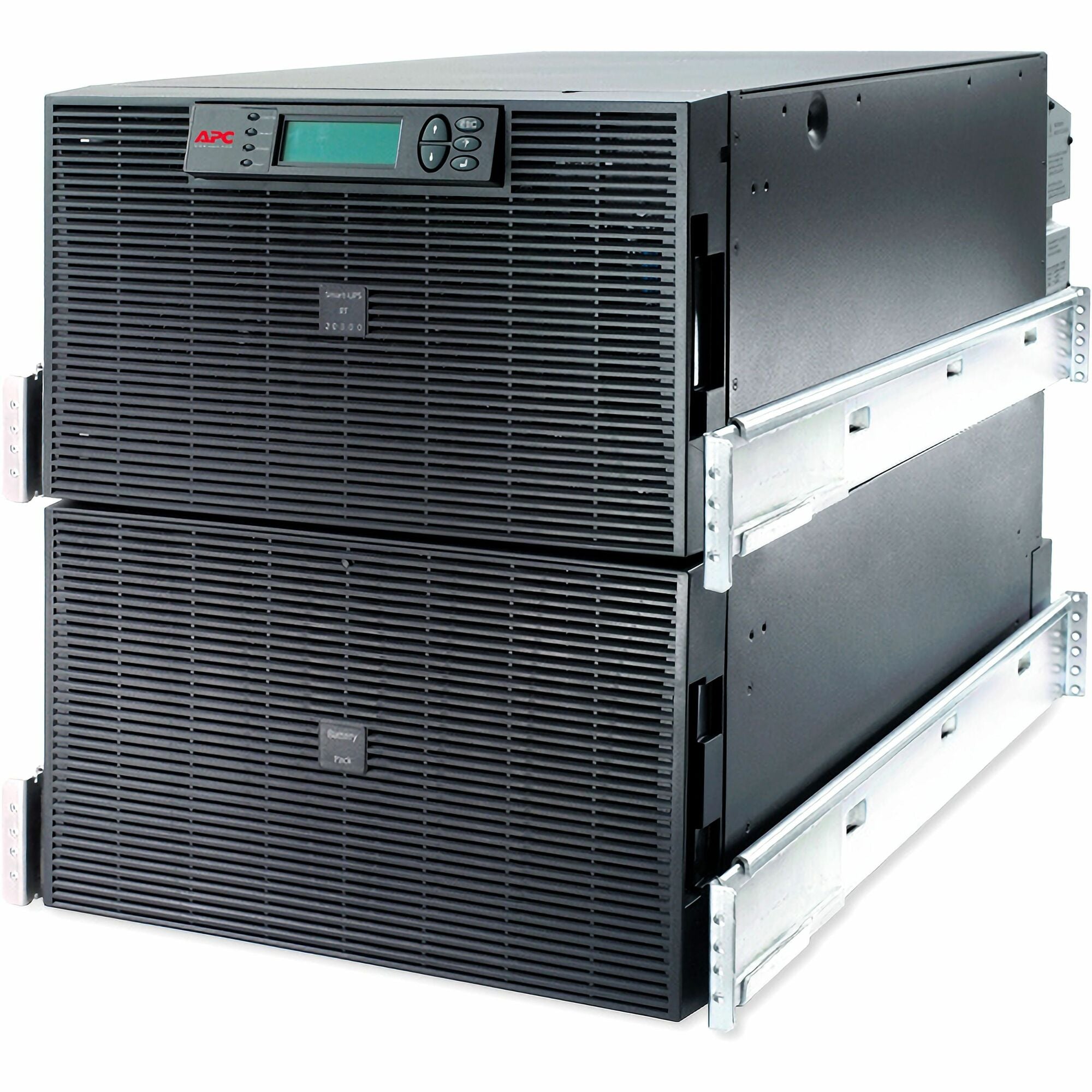

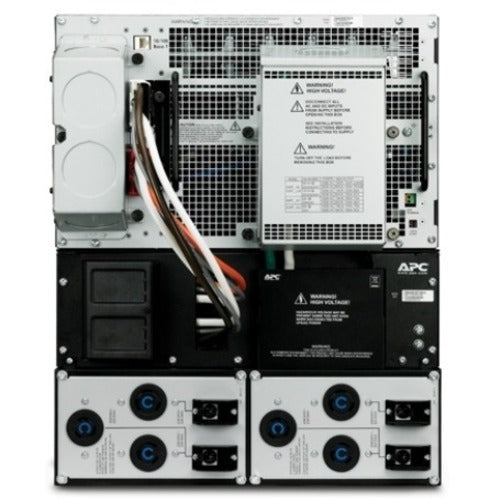

APC Smart-UPS RT 20000VA Tower/Rack Mountable UPS
- 20kVA power capacity for high-demand environments
- True double-conversion on-line power protection
- Rackmount design fits 12U space for flexible installation
- LCD display for easy monitoring and management
Regular price
$29,645.99
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing
The APC Smart-UPS RT is an online UPS with a power rating of 20kVA and output power capacity of 16000 watts. It includes multiple output connections such as NEMA L6-20R and NEMA L6-30R. This model is includes a lead-acid battery and is rack-mountable. It features a double conversion online topology, sine wave waveform type, and built-in bypass.
- 20kVA power capacity for high-demand environments
- True double-conversion on-line power protection
- Rackmount design fits 12U space for flexible installation
- LCD display for easy monitoring and management
Enhanced Overview
Specifications
| Product Family | Smart-UPS RT |
Miscellaneous
| For Country/Region | United States |
| Package Contents | |
| Software Included | PowerChute Management Software |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Certifications & Standards | UL 1778 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SURT20KRMXLT_ROHS_DECLARATION&p_FileName=SURT20KRMXLTKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=SURT20KRMXLT_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| EU RoHS Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=SURT20KRMXLT_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1512017EN&p_File_name=ENVPEP1512017_EN.pdf |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Sustainable Packaging | No |
| Product Contributes Saved Avoided Emissions | No |
| Packaging Contains Recycled Cardboard | Yes |
| Minimum Percentage of Recycled Metal Content | 0 |
Interfaces/Ports
| Serial Port | Yes |
| Network (RJ-45) | Yes |
Physical Characteristics
| Product Color | Black |
| Color Family | Black |
| Height | 20.98" |
| Width | 17.01" |
| Depth | 30.43" |
| Rack Height | 12U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 546.15 lb |
| Mounting Preference | Lower |
| Mounting Location | Front |
Warranty
| Limited Warranty | 2 Year |
Management
| Network Management | SNMP Manageable |
Power Description
| Load Capacity (VA) | 20 kVA |
| Load Capacity (Watt) | 16 kW |
| Input Voltage | 208 V AC |
| Input Voltage | 240 V AC |
| Input Current | 114 A |
| Output Voltage | 208 V AC |
| Output Voltage | 240 V AC |
| Waveform Type | Sine Wave |
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SURT20KRMXLT |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC |
| Product Line | Smart-UPS |
| Product Series | RT |
| Product Name | Smart-UPS RT 20000VA Tower/Rack Mountable UPS |
| Packaged Quantity | 1 Each |
| Product Type | Double Conversion Online UPS |
Battery Information
| Number of Batteries | 4 |
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4.90 Minute |
| Backup/Run Time (Half Load) | 15.30 Minute |
| Typical Battery Recharge Time | 2 Hour |
| Hot Swappable | Yes |
Technical Information
| Plug/Connector Type | Hard Wire 3-wire (2PH + G) |
| Receptacle Type | NEMA L6-30R |
| Receptacle Type | NEMA L6-20R |
| Receptacle Detail | 4 x NEMA L6-20R |
| Receptacle Detail | 1 x Hard Wire 3-wire (2PH + G) |
| Receptacle Detail | 2 x NEMA L6-30R |
| Number of Battery & Surge Outlets | 6 |
| Phase | Single Phase |
| Bypass Switch | Static |
| Bypass Switch | Internal |
| Bypass Switch | External (Optional) |
| Bypass Switch | Automatic & Manual |
| Emergency Power OFF | Yes |
