Schneider Electric SA BK500
- Uses your PC to access additional power protection and management features
- Battery notification warns when battery is not able to provide backup power
- Cold-start capability provides temporary power when utility power is out
- Dataline surge protection guards equipment from power surges on data lines
- Wiring fault indicator informs you of potential wiring problems in circuit
Couldn't load pickup availability
Business Accounts
Business Purchasing Made Easy
- Net Terms
- Bulk Pricing
- Custom Catalogs
- Dedicated Account Manager
- Purchase Orders Accepted
- Tax Exempt Purchasing

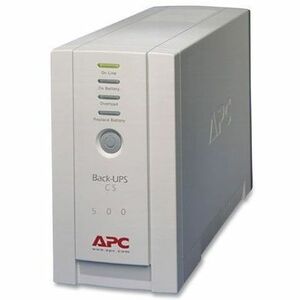

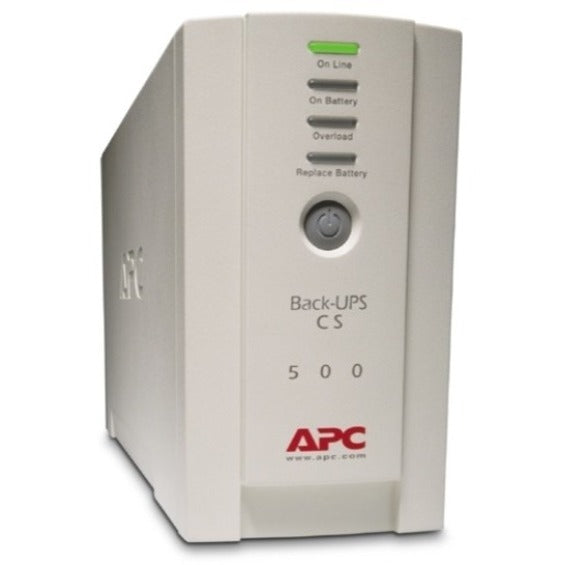

Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS BK 500VA. APC Back-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With 6 outlets, this tower UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 300w capacity is ideal for workstations, keeping you connected and productive during power fluctuations. This computer backup offers lifetime guaranteed surge protection with a $100,000 equipment protection policy. Use the included PowerChute software to configure settings and set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. Package Contains UPS, CD with software, Cord management straps, USB cable, User manual
- Uses your PC to access additional power protection and management features
- Battery notification warns when battery is not able to provide backup power
- Cold-start capability provides temporary power when utility power is out
- Dataline surge protection guards equipment from power surges on data lines
- Wiring fault indicator informs you of potential wiring problems in circuit
Enhanced Overview
Specifications
| Product Family | Back-UPS CS |
Miscellaneous
| For Country/Region | United States |
| Package Contents | |
| Additional Information |
|
| Energy Star | Yes |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Certifications & Standards | cUL Listed|California (CEC) Battery Charger|ENERGY STAR V2.0 (USA)|Industry Canada |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Single-use Plastic (SUP) Free Shipping Packaging | No |
| Recycled | No |
| Assembly Required | No |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BK500_ROHS_DECLARATION&p_FileName=BK500KIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=BK500_REACH_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| EU RoHS Declaration URL | https://download.schneider-electric.com/files?p_Doc_Ref=BK500_ROHS_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability) |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVPEP1712010EN&p_File_name=ENVPEP1712010_V3.pdf |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_Doc_Ref=ENVEOLI1712010_EN&p_File_name=ENVEOLI1712010_EN.pdf |
| California Proposition 65 Warning | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Energy Star URL | https://www.energystar.gov/products/uninterruptible_power_supplies |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Sustainable Packaging | No |
| Product Contributes Saved Avoided Emissions | No |
| Packaging Contains Recycled Cardboard | Yes |
| Minimum Percentage of Recycled Metal Content | 0 |
Warranty
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 12 month(s) |
| Directly Connected Equipment Guarantee | Lifetime |

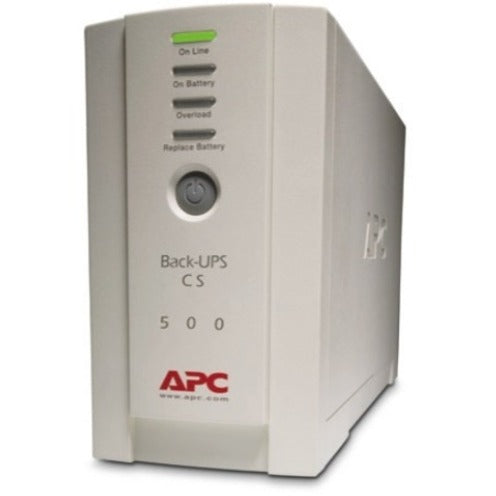

Controls/Indicators
| Status Indicators | LED status display with On Line, On Battery, Replace Battery, Site wiring fault and Overload Indicators |
Interfaces/Ports
| Serial Port | Yes |
| USB | Yes |
Physical Characteristics
| Product Color | Beige |
| Color Family | Beige |

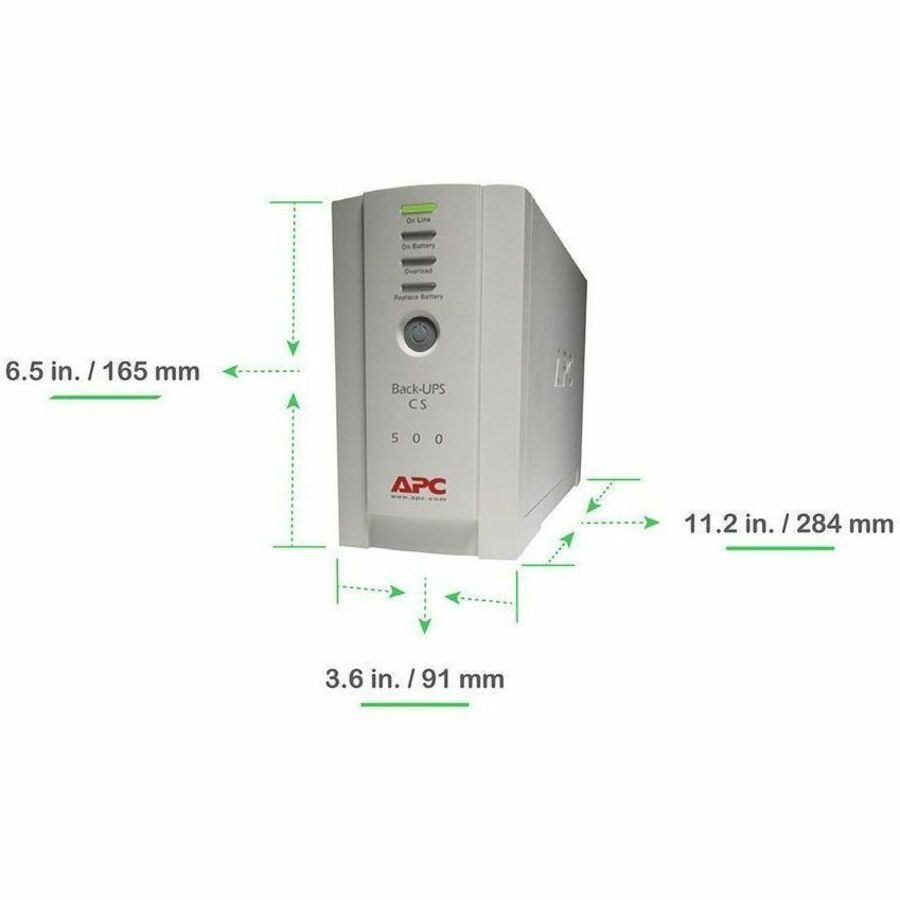

| Height | 6.50" |
| Width | 3.58" |
| Depth | 11.18" |
| Form Factor | Tower |
| Weight (Approximate) | 13.82 lb |
| Mounting Preference | No Preference |
| Mounting Location | Front |
Power Description
| Load Capacity (VA) | 500 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V |
| Input Current | 10 A |
| Output Voltage | 120 V AC |
| Waveform Type | Stepped Approximated Sine Wave |
| Surge Energy Rating | 480 J |
| Power Consumption | 300 W |
General Information
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | BK500 |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC |
| Product Line | Back-UPS |
| Product Series | CS |
| Product Name | BK500 120V Backup System |
| Packaged Quantity | 1 Each |
| Product Type | Standby UPS |
Environmental Conditions
| Maximum Operating Temperature | 113°F (45°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 7.03 W |

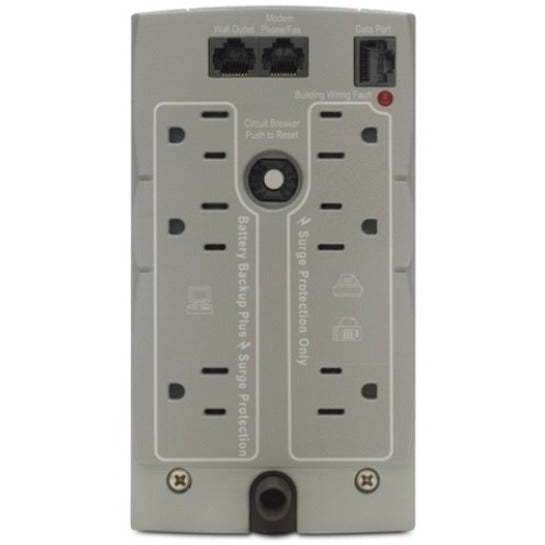

Technical Information

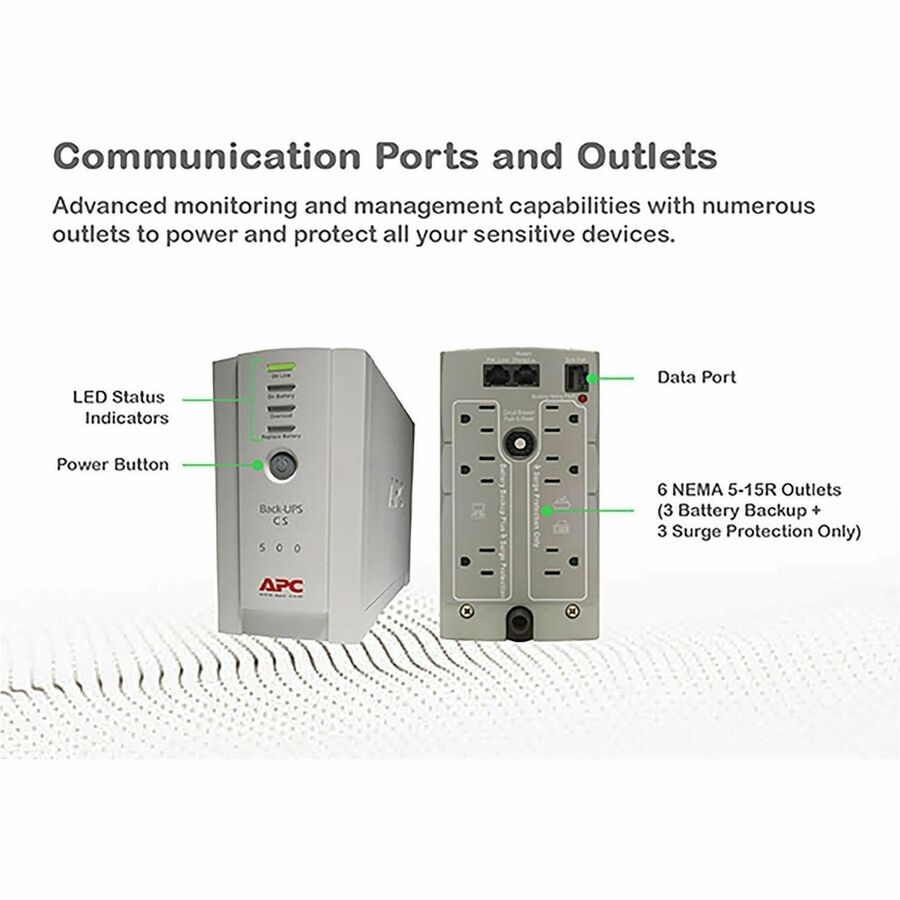

| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15P |
| Receptacle Detail | 3 x NEMA 5-15R |
| Receptacle Detail | 3 x NEMA 5-15R Surge |
| Number of Battery & Surge Outlets | 6 |
| Dataline Protection | RJ-11 |
| Cord Length | 6 ft |
| Phase | Single Phase |
Management
| Alarm | Low Battery |
| Alarm | On Battery |
| Alarm | Overload |
Battery Information
| Battery Characteristics | Spill-proof, Maintenance-free |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Typical Battery Recharge Time | 8 Hour |
